Standard Lithium Battery Pack: Voltage, Capacity, and Configuration Options

A standard lithium battery pack is a complete, ready-to-specify assembly of lithium-ion cells configured in series and parallel to deliver a defined nominal voltage, capacity, and current capability, with integrated protection and a defined mechanical and electrical interface. Unlike a single cell, a battery pack includes the protection electronics, wiring, connector, and enclosure needed to safely power a device.

Selecting the right pack requires matching four factors to your device's requirements: voltage, capacity (or energy), discharge current, and physical/electrical integration. For readers evaluating the full range of standard rechargeable lithium options, Gloflux's Standard Li-ion batteries hub provides a broader product overview.

What Is a Standard Lithium Battery Pack?

A standard lithium battery pack is a repeatable, pre-engineered battery product built from multiple lithium-ion cells wired together in a defined configuration. The complete assembly includes:

• Cells — the electrochemical energy storage units.
• Protection electronics — typically a PCM (protection circuit module) or BMS (battery management system).
• Wiring and connector — the electrical interface to the device and charger.
• Enclosure or wrapping — mechanical protection and insulation.

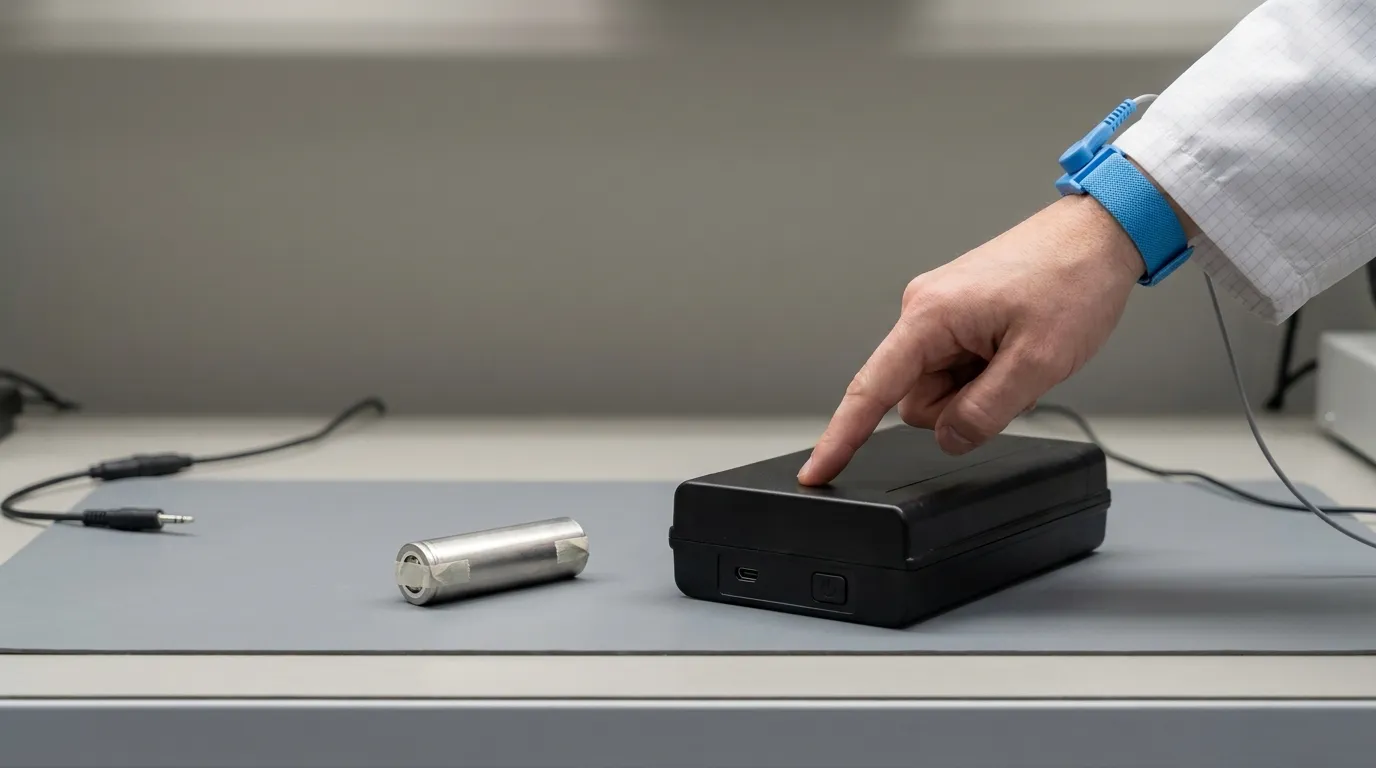

A cell is a single electrochemical unit with its own nominal voltage (for example, approximately 3.6–3.7 V for common lithium-ion chemistries). A battery pack is the complete assembly that delivers the voltage and capacity the device actually requires.

Component	Single Cell	Battery Pack
Voltage	Fixed by chemistry	Determined by cell chemistry × series count
Capacity	Fixed by cell design	Determined by cell capacity × parallel count
Protection	Usually none or minimal	PCM/BMS included
Interface	Bare terminals (often)	Connector, wiring, enclosure defined

Most devices do not run directly from a single cell. They need a pack with a specific nominal voltage — such as 3.7 V, 7.4 V, 11.1 V, or 14.8 V — and a capacity sufficient for the required runtime.

Voltage: Nominal Voltage, Charge Voltage, and Series Configuration

How Series Cells Determine Pack Voltage

The nominal voltage of a battery pack is determined by the cell chemistry and the number of cells connected in series. When cells are connected in series, their voltages add while capacity remains the same.

For a pack with n series-connected cells, the nominal voltage is n × the nominal voltage of one cell. This relationship is a standard definition in lithium battery specifications (EN 61960-3 defines nominal voltage in exactly this way for batteries with series-connected cells: https://standards.iteh.ai/catalog/standards/clc/5756d609-f718-4ac0-b0bc-c7eb940c8841/en-61960-3-2017).

For example, if each cell has a nominal voltage of 3.7 V:

Configuration	Nominal Pack Voltage
1S	3.7 V
2S	7.4 V
3S	11.1 V
4S	14.8 V

These are examples based on a 3.7 V cell platform. Actual values depend on the cell chemistry and the specific cell used.

Nominal Voltage vs. Maximum Charge Voltage

Nominal voltage is the rated operating voltage of the pack during normal discharge. It is not the highest voltage the pack reaches.

Maximum charge voltage is the highest voltage the pack is designed to accept during charging. For common lithium-ion chemistries, the maximum charge voltage per cell is typically around 4.2 V. That means a 3S pack with a nominal voltage of 11.1 V may require a charger that can supply approximately 12.6 V.

This distinction matters in two ways:

1. Charger compatibility — the charger must match the pack's chemistry, series count, and charge voltage limit.
2. Device voltage tolerance — the device must accept the voltage range between fully charged and fully discharged, not just the nominal value.

Do not assume a charger rated for a specific nominal voltage is correct for every pack with that label. The charger must match the full charge profile.

Voltage Sag and Why It Matters

Voltage sag is the temporary drop in pack voltage under load, caused by internal resistance. A pack that reads 11.1 V at rest may drop below 10 V under a heavy load. If the device's minimum operating voltage is higher than the sagged voltage, the device may shut down even though the pack still has charge.

Voltage sag depends on:

• Internal resistance of the cells and pack connections;
• Load current;
• Temperature (resistance increases at low temperature);
• State of charge (sag is more pronounced as the pack depletes).

For this reason, nominal voltage alone is not enough to confirm compatibility. You also need to verify that the pack can hold adequate voltage under your device's actual load.

Capacity and Energy: mAh, Ah, and Wh

Capacity (mAh / Ah)

Capacity describes the amount of electrical charge a battery pack can deliver under specified conditions. It is expressed in milliampere-hours (mAh) for smaller packs or ampere-hours (Ah) for larger packs.

Rated capacity is not a fixed physical constant — it depends on test conditions. Per EN 61960-3, the rated capacity of a battery is the capacity declared by the manufacturer, determined under specified test conditions (https://standards.iteh.ai/catalog/standards/clc/5756d609-f718-4ac0-b0bc-c7eb940c8841/en-61960-3-2017). Discharge rate, temperature, and cutoff voltage all affect the capacity actually delivered.

If you compare two packs with the same mAh rating from different suppliers, the real delivered capacity may differ because the test conditions differ. Always request the datasheet and confirm the conditions.

Energy (Wh)

Energy is the total amount of work the pack can deliver. It is calculated as:

Energy (Wh) = Nominal Voltage (V) × Capacity (Ah)

Two packs can have the same capacity in Ah but very different energy because they operate at different voltages.

Pack	Nominal Voltage	Capacity	Energy
Pack A	7.4 V	5 Ah	37 Wh
Pack B	11.1 V	5 Ah	55.5 Wh

When comparing packs for runtime, Wh is the more meaningful figure because it accounts for voltage. Runtime can be estimated only when the device's power consumption in watts is known — not just its current draw.

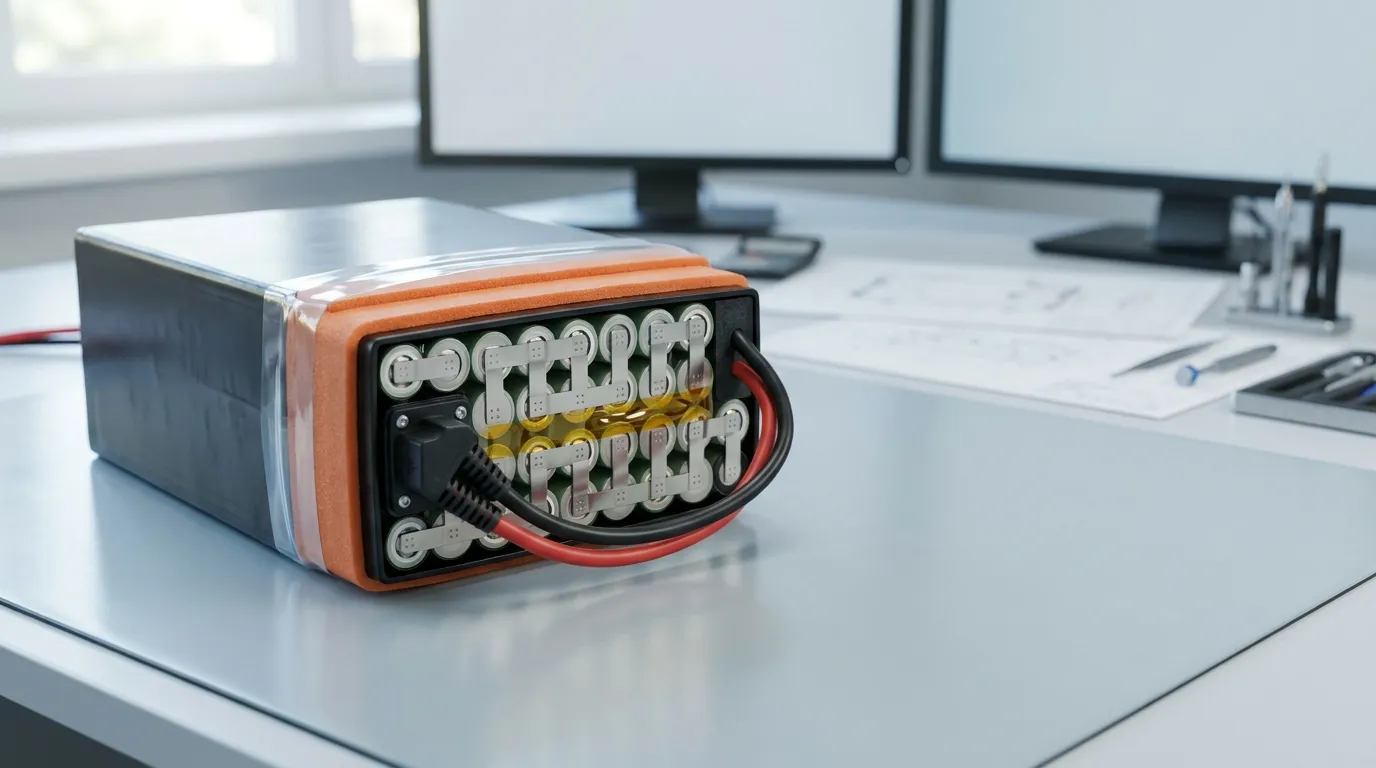

Series and Parallel Configuration: What 2S, 3S, 1P, and 2P Mean

Battery pack configurations are described using a simple notation:

• S = number of cells in series (adds voltage)
• P = number of cells in parallel (adds capacity and current capability)

A label such as 3S1P means 3 cells in series and 1 cell in parallel. A 3S2P pack has 3 cells in series, repeated twice in parallel — 6 cells total.

Configuration	Approximate Nominal Voltage (3.7 V cells)	Capacity Relationship	Typical Use
1S1P	3.7 V	Single-cell capacity	Small wearables, Bluetooth devices
2S1P	7.4 V	Single-cell capacity	Portable electronics, POS terminals
3S1P	11.1 V	Single-cell capacity	Power tools, robotics, medical devices
3S2P	11.1 V	Double-cell capacity	Higher runtime at 11.1 V

The examples above assume a 3.7 V cell. The same notation applies to any cell chemistry, but the voltage per cell will differ.

Why Parallel Cells Must Be Matched

In a parallel configuration, cells must be closely matched in capacity, voltage, and internal resistance. Mismatched cells can cause uneven current sharing, premature aging, and safety risk. Reputable pack manufacturers perform cell matching before assembly and document the process.

Balancing in Series Configurations

In a series configuration, cells should ideally remain at the same state of charge. If one cell charges or discharges faster than another, the pack becomes unbalanced. This reduces usable capacity and can lead to overcharge or over-discharge of individual cells.

A BMS with balancing actively manages this by equalizing cell voltages during charging or discharging. Balancing is not a universal feature — confirm whether your standard pack includes it.

Current and C-Rate: Continuous and Peak Discharge

Continuous vs. Peak Current

Battery packs are rated for how much current they can deliver safely:

• Continuous current — the sustained current the pack can deliver without exceeding its thermal or safety limits.
• Peak current — the temporary current the pack can deliver for a short duration (for example, a few seconds) to handle startup, motor surges, or communication bursts.

Both values matter. A device may draw 2 A continuously but spike to 5 A for 500 ms during operation. If the pack is rated for only 3 A peak, the device may trigger the protection circuit even though the average current is within limits.

Always confirm the duration of the peak rating — a 5 A peak for 1 second is very different from a 5 A peak for 30 seconds.

What Is C-Rate?

C-rate relates current to capacity. It is a ratio:

C-rate = Current ÷ Capacity

A 2 Ah pack at 1C delivers 2 A. The same 2 Ah pack at 2C delivers 4 A. C-rate is a convenient way to compare current capability across packs of different capacities.

Pack Capacity	0.5C	1C	2C
2 Ah	1 A	2 A	4 A
5 Ah	2.5 A	5 A	10 A

The C-rate figure is useful, but your device cares about amperes, not C-rate. Convert the device's current demand to a C-rate requirement before comparing packs.

Internal Resistance and Heat

Internal resistance is the opposition to current flow inside the cells and pack connections. Higher internal resistance causes:

• Greater voltage sag under load;
• More heat generation during discharge;
• Lower delivered voltage at the device;
• Reduced efficiency.

A pack with the same nominal voltage and capacity as another may perform very differently under load if its internal resistance is higher. This is another reason to request the datasheet and verify the continuous and peak current ratings under your operating conditions.

Protection and Management: PCM, BMS, and Smart Features

PCM (Protection Circuit Module)

A PCM provides basic protection against:

• Overcharge
• Over-discharge
• Overcurrent
• Short circuit

A PCM is a protection device, not a management system. It does not typically provide cell balancing, fuel gauging, or communication.

BMS (Battery Management System)

A BMS includes the protective functions of a PCM and adds management capabilities. Depending on the design, a BMS may provide:

• Cell balancing — equalizing cell voltages in a series pack;
• State of charge (SOC) estimation — estimating remaining charge;
• State of health (SOH) monitoring — tracking degradation;
• Temperature monitoring;
• Data logging;
• Communication (SMBus, I2C, UART, CAN, RS485, Bluetooth — depending on the model).

A standard pack does not necessarily include a smart BMS. Basic protection is common; advanced monitoring and communication are not universal. Gloflux's battery-pack product range includes packs with built-in BMS protection for overcharge and short-circuit protection as a category-level feature, while its dedicated smart Li-ion battery pack product page specifically describes real-time monitoring of voltage, current, and temperature.

If your device needs to read remaining charge, log battery data, or communicate with the pack, confirm that the chosen pack includes those smart functions — do not assume they are present.

Why Balancing Matters

In a series pack, cells must stay balanced. Without balancing, the pack's usable capacity is limited by the weakest cell, and repeated imbalance can degrade cells faster. If your device requires high cycle life or deep discharges, a pack with balancing is worth the additional cost.

Charger, Connector, and Physical Integration

Charger Compatibility

The charger must match the pack's:

• Chemistry (charge voltage limits);
• Series count (total charge voltage);
• Charge current;
• Charge profile (typically CC/CV — constant current, then constant voltage);
• Connector and polarity.

Using a charger with the wrong voltage or profile can trip the protection circuit, damage the pack, or create a safety risk. When specifying a standard pack, confirm the charger model and connector are part of the supply scope or clearly defined in the datasheet.

Connector and Wiring

The pack's connector must match the device's mating connector in:

• Polarity (reverse connection can damage the device or pack);
• Current rating (connector must handle peak current);
• Pinout (if the pack carries communication or thermistor lines);
• Mechanical fit (locking, strain relief, orientation).

Wiring must be sized for the expected current. A connector rated for 5 A used on a pack delivering 10 A peak is a field failure waiting to happen.

Dimensions, Enclosure, and Thermal Environment

Physical fit is a common source of integration problems. Confirm:

• Pack dimensions — length, width, height, including connector protrusion;
• Weight — relevant for wearables and portable devices;
• Enclosure type — hard case, shrink wrap, or customer-defined housing;
• Thermal environment — heat dissipation, ventilation, and operating temperature range;
• Ingress protection — an IP rating only if the device environment requires it.

A pack that fits electrically but not mechanically is not a viable option, regardless of its electrical specifications.

When Is a Custom Battery Pack the Better Choice?

Standard lithium battery packs are economical and fast to source when your requirements fall within a common configuration. Custom design becomes the right path when standard options fail one or more requirements.

Decision Factor	Standard Pack Suitable	Custom Pack Recommended
Voltage	Matches a common platform	Requires a non-standard voltage
Capacity	Standard capacity is sufficient	Requires a specific capacity for runtime
Current	Standard continuous/peak ratings meet load	Load exceeds standard ratings
Dimensions	Standard enclosure fits	Device has an unusual shape or tight space
Connector	Standard connector and pinout match	Requires a specific connector or wiring
Charger	Existing charger matches	Needs a specific charge profile
Temperature	Standard range covers environment	Requires wide-temperature or high-rate performance
Communication	No communication needed	Requires fuel gauge, data logging, or protocols
Certification	Standard documentation sufficient	Requires specific compliance documentation

A practical rule: start with a standard pack only when the specification truly fits. If you need multiple changes — a different connector, a new enclosure, a specific capacity, and a communication protocol — you are no longer buying a standard product. A custom battery pack design (inferred) is the more reliable path.

Documentation and Validation: What You Should Ask For

Engineering and procurement teams should not accept a pack on marketing claims alone. Request these documents and confirm their scope:

Datasheet / TDS (Technical Data Sheet)

The datasheet defines the pack's intended specifications, including:

• Nominal and charge voltage;
• Capacity (with test conditions);
• Continuous and peak current;
• Charge and discharge temperature limits;
• Dimensions and weight;
• Connector and wiring details;
• BMS/PCM protection thresholds.

A datasheet is a design document. Verify that the values in the datasheet match your load profile, environment, and physical constraints.

SDS / MSDS (Safety Data Sheet)

Required for handling, storage, and transport purposes. It describes hazards, handling precautions, and emergency measures.

UN38.3 Test Summary

UN38.3 refers to Section 38.3 of the UN Manual of Tests and Criteria, which specifies design tests for lithium cells and batteries used in transport. Per the U.S. Department of Transportation's Pipeline and Hazardous Materials Safety Administration (PHMSA), lithium batteries must pass these design tests before they can be transported, and a test summary must be available: https://www.phmsa.dot.gov/training/hazmat/new-un-requirement-test-summaries

A UN38.3 test summary is a transport document. It is not the same as a product safety certification.

IEC / UL Reports

IEC or UL test reports apply to a defined product model, construction, and standard scope. They address product safety — not transport — and do not automatically cover every model or configuration a manufacturer produces.

An IEC/UL report is not the same as a UN38.3 test summary. The two serve different purposes and are issued under different programs.

Sample Validation

Always validate a sample before approving production. The validation should include:

• Electrical performance at your load profile;
• Charger compatibility;
• Mechanical fit;
• Temperature behaviour in your device's operating environment;
• Connector fit and durability.

Do not rely solely on the datasheet. Real-world integration tests catch problems that specification sheets cannot.

RFQ Checklist: Questions to Ask Your Battery Pack Supplier

When you are ready to request a quote for a standard lithium battery pack, confirm the following with the supplier:

1. What is the exact nominal voltage, charge voltage, and cutoff voltage?
2. What is the rated capacity under what discharge rate and temperature condition?
3. What are the continuous and peak current ratings, and for how long is the peak current supported?
4. What protection features are included — PCM only, or a BMS with balancing and communication?
5. What is the charge profile, and does the supplier provide the charger or specify a compatible model?
6. What connector, pinout, and wiring options are available?
7. What are the pack dimensions, weight, and enclosure type?
8. What is the operating temperature range for charge, discharge, and storage?
9. Which documents are included — datasheet, SDS/MSDS, UN38.3 test summary, IEC/UL report?

1. What is the change-control policy for cell source, BMS firmware, or construction changes?

These questions protect you from specification drift and ensure the pack you approve is the pack you receive in production.

From Standard to Custom: The Next Step

A standard lithium battery pack is a practical, cost-effective choice when it meets your device's voltage, capacity, current, and integration requirements. When your device needs a specific connector, an unusual enclosure, a non-standard capacity, or a particular charge profile, the standard pack has reached its limit.

Gloflux engineers develop packs by determining the series and parallel arrangement needed to achieve the required voltage and capacity, then selecting the appropriate cells, protection electronics, and mechanical design. If you have reviewed standard options and your requirements fall outside the common configurations, the next step is a custom battery pack design (inferred) consultation to define the correct architecture, documentation, and production path for your device.
