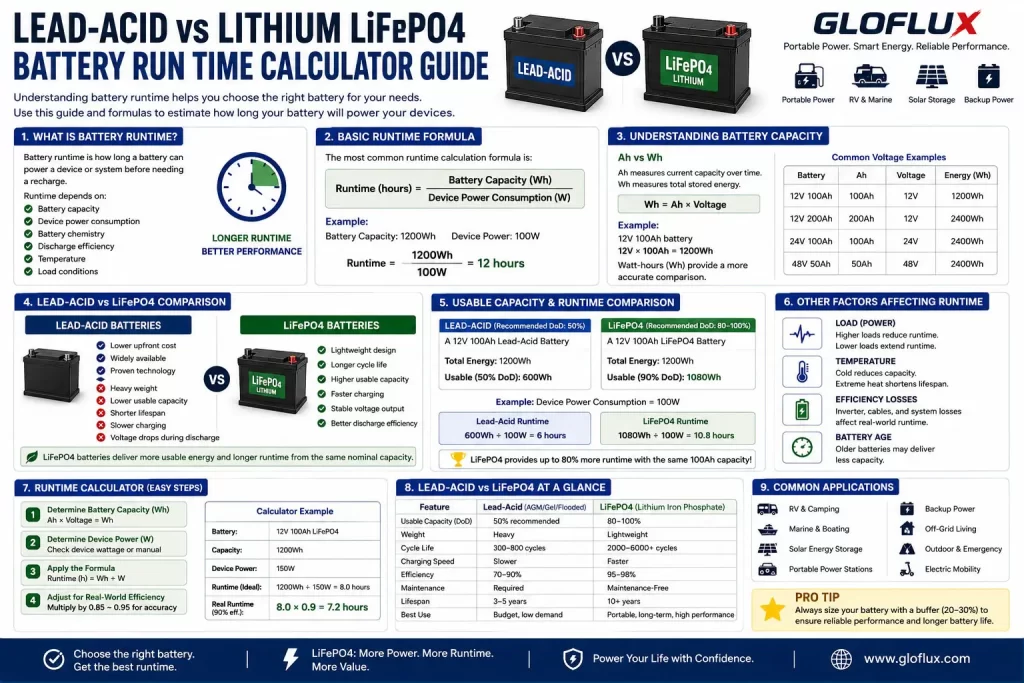

Lead-Acid vs Lithium LiFePO4 Battery Run Time Calculator Guide

Battery runtime is one of the most important factors when choosing a portable power system, RV battery, marine energy solution, solar storage setup, or backup power application. Whether you are using a traditional lead-acid battery or upgrading to a lithium LiFePO4 battery, understanding runtime calculations helps optimize performance, efficiency, and long-term reliability.

In 2026, portable energy systems are becoming more advanced, lightweight, and energy efficient. As a result, more users are comparing lead-acid and lithium batteries to determine which technology provides better runtime and overall value.

At Gloflux, we focus on portable energy solutions and advanced rechargeable battery technologies designed for modern energy applications. This guide explains how battery runtime is calculated, the differences between lead-acid and LiFePO4 batteries, and how to estimate real-world operating time accurately.

What Is Battery Runtime?

Battery runtime refers to how long a battery can power a device or system before requiring recharge.

Runtime depends on several factors, including:

• Battery capacity
• Voltage
• Device power consumption
• Battery chemistry
• Discharge efficiency
• Temperature
• Load conditions

Understanding runtime calculations helps users:

• Choose the correct battery size
• Prevent unexpected shutdowns
• Optimize portable power systems
• Improve energy efficiency

Basic Battery Runtime Formula

The most common runtime calculation formula is:

$Runtime\ (hours)=\frac{Battery\ Capacity\ (Wh)}{Device\ Power\ Consumption\ (W)}$Runtime (hours)=Device Power Consumption (W)Battery Capacity (Wh)​

This formula estimates how long a battery can operate a device under ideal conditions.

Example

Suppose you have:

• A 1200Wh battery
• A 100W device

The estimated runtime becomes:

$\frac{1200Wh}{100W}=12\ hours$100W1200Wh​=12 hours

Actual runtime may vary depending on efficiency losses and environmental conditions.

Understanding Battery Capacity

Battery capacity is commonly measured in:

• Amp Hours (Ah)
• Watt-hours (Wh)

Ah vs Wh

Ah measures current capacity over time, while Wh measures total stored energy.

The conversion formula is:

$Wh=Ah\times Voltage$Wh=Ah×Voltage

Example

A 12V 100Ah battery stores:

$12V\times100Ah=1200Wh$12V×100Ah=1200Wh

Watt-hours provide a more accurate comparison between different battery systems.

Lead-Acid vs LiFePO4 Batteries

Lead-acid and lithium LiFePO4 batteries behave very differently during discharge and runtime calculations.

Lead-Acid Batteries

Traditional lead-acid batteries include:

• Flooded lead-acid
• AGM batteries
• Gel batteries

Advantages

• Lower upfront cost
• Widely available
• Proven technology

Disadvantages

• Heavy weight
• Lower usable capacity
• Shorter lifespan
• Slower charging
• Voltage drop during discharge

Lead-acid batteries typically should not be deeply discharged regularly because excessive discharge shortens lifespan.

LiFePO4 Batteries

LiFePO4 (Lithium Iron Phosphate) batteries are becoming increasingly popular in 2026.

Advantages

• Lightweight design
• Longer cycle life
• Higher usable capacity
• Faster charging
• Stable voltage output
• Better discharge efficiency

Disadvantages

• Higher upfront cost
• Requires compatible charging systems

For many portable energy applications, LiFePO4 batteries provide significantly better real-world runtime performance.

At Gloflux, portable lithium battery systems continue gaining popularity for energy storage and mobile power applications where efficiency and portability matter most.

Why LiFePO4 Batteries Often Last Longer

Although two batteries may have identical Ah ratings, runtime can differ significantly because of usable discharge depth.

Lead-Acid Discharge Recommendations

Lead-acid batteries are usually recommended to operate at:

• 50% Depth of Discharge (DoD)

Frequent deeper discharge may reduce lifespan dramatically.

Example

A 12V 100Ah lead-acid battery:

$1200Wh\times50\%=600Wh\ usable$1200Wh×50%=600Wh usable

LiFePO4 Discharge Recommendations

LiFePO4 batteries commonly support:

• 80–100% usable discharge

Example

A 12V 100Ah LiFePO4 battery:

$1200Wh\times90\%=1080Wh\ usable$1200Wh×90%=1080Wh usable

This means lithium batteries often provide significantly more usable runtime from the same nominal capacity.

Runtime Comparison Example

Suppose a device consumes:

• 100W continuously

Lead-Acid Runtime

Usable energy:

$\frac{600Wh}{100W}=6\ hours$100W600Wh​=6 hours

LiFePO4 Runtime

Usable energy:

$\frac{1080Wh}{100W}=10.8\ hours$100W1080Wh​=10.8 hours

Even with identical Ah ratings, the LiFePO4 battery delivers substantially longer usable runtime.

Why Voltage Stability Matters

Lead-acid batteries gradually lose voltage during discharge.

This can cause:

• Reduced motor performance
• Lower efficiency
• Device shutdown at low voltage

LiFePO4 batteries maintain more stable voltage throughout discharge, improving:

• Runtime consistency
• Device performance
• Power efficiency

This becomes especially important for:

• Trolling motors
• Portable electronics
• RV systems
• Solar energy storage
• Portable power stations

How Load Affects Runtime

Battery runtime changes depending on device power demand.

Higher loads:

• Reduce runtime
• Increase heat generation
• Lower efficiency

Lower loads:

• Extend runtime
• Improve energy efficiency

Real-world runtime calculations should always consider actual device consumption.

Temperature and Battery Runtime

Temperature strongly affects battery performance.

Cold Temperatures

Cold weather:

• Reduces chemical activity
• Lowers available capacity
• Shortens runtime

Lead-acid batteries are especially affected by cold conditions.

High Temperatures

Excessive heat:

• Accelerates battery degradation
• Reduces lifespan
• Increases safety risks

Proper thermal management improves battery reliability.

Battery Efficiency Differences

LiFePO4 batteries generally provide higher efficiency than lead-acid systems.

Battery Type	Typical Efficiency
Flooded Lead-Acid	70–80%
AGM	80–90%
LiFePO4	95–98%

Higher efficiency means:

• More usable energy
• Less heat loss
• Better runtime performance

Weight and Portability

Battery weight significantly impacts portable energy systems.

Lead-Acid Batteries

• Heavier
• Lower energy density
• Difficult transport

LiFePO4 Batteries

• Lightweight
• Compact design
• Easier installation

Portable applications increasingly favor lithium technology because of weight reduction advantages.

Common Applications for Runtime Calculations

Battery runtime calculations are important for:

• RV systems
• Marine batteries
• Solar storage
• Portable power stations
• Backup energy systems
• Camping electronics
• Portable medical devices
• Off-grid systems

As portable power demand grows in 2026, runtime estimation becomes increasingly important.

How Battery Management Systems Improve Runtime

Modern LiFePO4 batteries often include Battery Management Systems (BMS).

A BMS helps:

• Protect against over-discharge
• Monitor temperature
• Balance cells
• Improve charging safety
• Optimize battery lifespan

These systems help maintain consistent runtime performance and reliability.

Why Portable Energy Trends Favor Lithium Batteries

Modern users increasingly prioritize:

• Lightweight power systems
• Longer runtime
• Faster charging
• Portable energy storage
• Compact battery design
• Smart charging integration

These trends continue accelerating lithium battery adoption across consumer and industrial applications.

Can You Replace Lead-Acid with LiFePO4?

In many cases, yes.

Benefits may include:

• Longer runtime
• Reduced weight
• Faster charging
• Longer lifespan
• Better efficiency

However, users should verify:

• Charging compatibility
• Voltage requirements
• BMS integration
• System specifications

Runtime Calculator Accuracy

Battery runtime calculators provide estimates rather than exact predictions.

Real-world factors affecting runtime include:

• Temperature
• Device startup surges
• Battery age
• Efficiency losses
• Inverter losses
• Cable resistance

Still, runtime calculations remain extremely useful for system planning.

Why Runtime Matters More in 2026

Portable power systems are now essential across:

• Outdoor recreation
• Emergency backup
• Mobile workstations
• Smart electronics
• Renewable energy storage
• Portable mobility systems

Users increasingly expect:

• Longer runtime
• Lightweight portability
• Fast charging
• Reliable performance

This is driving continued growth in LiFePO4 battery adoption.

The Future of Portable Battery Systems

Battery technology continues evolving toward:

• Higher energy density
• Faster charging
• Smaller form factors
• Smarter BMS systems
• Better thermal management
• Longer cycle life

Portable energy systems will likely become even more compact and efficient over the next decade.

The Role of Gloflux in Portable Energy Solutions

At Gloflux, we focus on advanced battery technologies designed for modern portable energy applications.

Our battery solutions support:

• Portable electronics
• Replaceable battery systems
• Portable energy storage
• Compact lithium battery packs
• Smart charging systems

As portable energy demand continues growing in 2026, runtime optimization remains a major priority across modern battery systems.

Final Thoughts

Battery runtime calculations help users understand how long a power system can operate under real-world conditions.

Although lead-acid batteries remain affordable and widely used, LiFePO4 batteries increasingly provide better:

• Runtime
• Efficiency
• Weight reduction
• Charging speed
• Long-term value

Understanding battery chemistry, usable capacity, and runtime formulas helps users choose better portable energy solutions for modern applications.

FAQ About Battery Runtime Calculations

How do you calculate battery runtime?

Battery runtime is typically calculated by dividing battery watt-hours by device power consumption.

Why do LiFePO4 batteries last longer?

LiFePO4 batteries support deeper usable discharge and maintain higher efficiency during operation.

Do lead-acid batteries lose voltage during discharge?

Yes. Lead-acid batteries gradually lose voltage as they discharge.

Are runtime calculators accurate?

They provide estimates, but real-world runtime depends on temperature, efficiency, load, and battery condition.

Which battery type is better for portable power?

LiFePO4 batteries are increasingly preferred because of lightweight design, higher efficiency, and longer runtime performance.
