28kWh Off Grid Energy Storage System

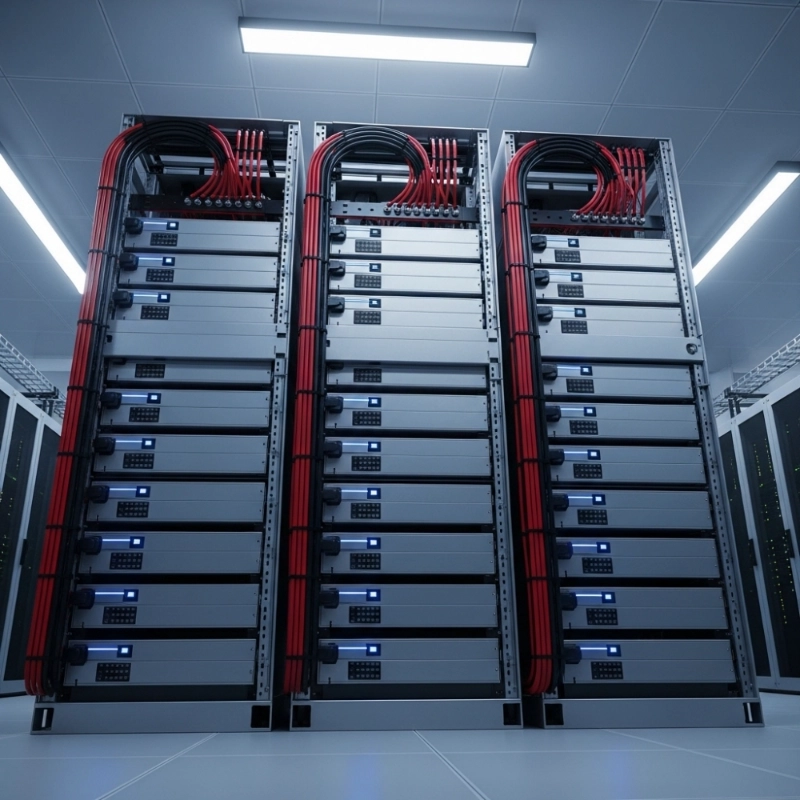

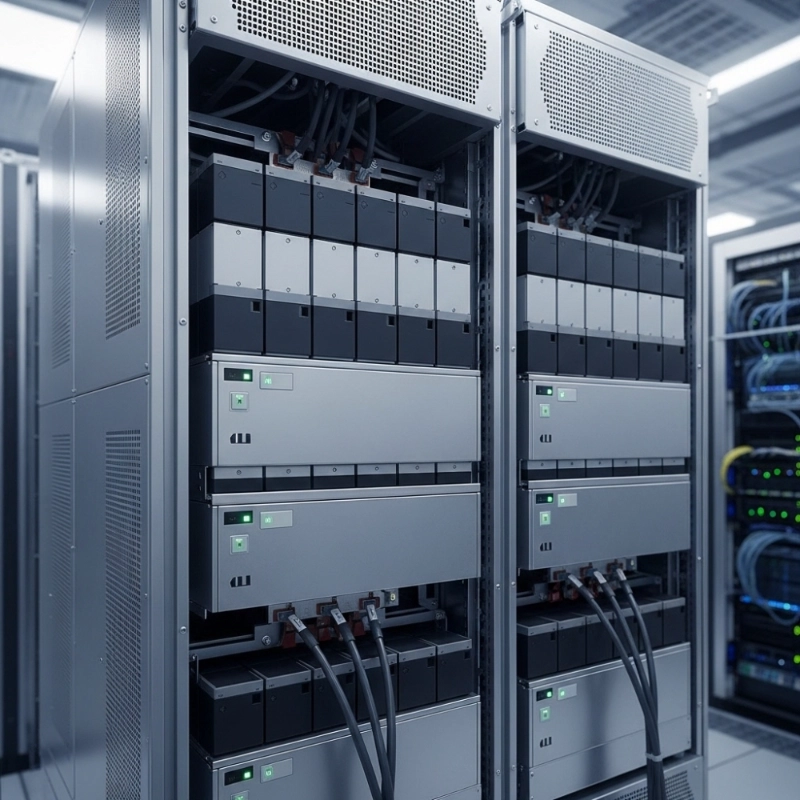

28 kWh Off-Grid Energy Storage System Structural Overview

The 28kWh off-grid energy storage system is built by engineers with the help of a modular lithium battery cluster architecture. They first combine several battery modules in series and parallel to create a stable, high-capacity DC energy bank. Next, technicians fit each module to a reinforced metal cabinet and fix it with insulated brackets to provide structural stability during work and transportation. In the meantime, cell matching is carried out before assembly to minimize voltage deviation and capacity imbalance. Once the mechanical positioning is completed, the system is transferred into complete electrical integration.

Battery Material System and Internal Composition

A lithium-ion chemistry system is implemented in each module. The cathode is usually lithium metal oxide that has been coated on aluminum foil, and the anode is composed of graphite carbon material on copper foil. Moreover, a microporous polymer separator is inserted between electrodes to avoid short circuits but permit ion transfer. Moreover, the electrolyte is composed of lithium salt in organic carbonate solvents, and moisture must be carefully controlled before sealing. In the meantime, the outer enclosure is designed in a metal cabinet format so as to guarantee mechanical protection and environmental resistance.

Application Scenarios and Industry Use Cases

The 28kWh off-grid energy storage is usually set up to serve residential solar energy storage, commercial building backup power stations, industrial microgrids, telecom base station energy backup, and remote area power supply stations. It is also used in solar photovoltaic integration systems, small-scale wind energy storage systems, and emergency power continuity systems where grid independence is needed.

Testing, Commissioning and Standards Compliance

Engineers carry out progressive validation such as charge-discharge cycling, voltage stability testing, and insulation resistance testing. Then, long-duration operational tests are used to confirm the consistency of energy efficiency and the accuracy of BMS control. Lastly, the system is in line with IEC energy storage safety standards and UN38.3 transportation requirements, which guarantee structural stability, electrical safety, and deployment preparedness in application environments.

Product Features

• Battery: 204V 140Ah LiFePO4, 172.8–230.4V operating range, 30A continuous charge/discharge, 252kg ±1kg, 640×700×907mm ±1mm
• Inverter: Optional power display and Bluetooth monitoring are supported, allowing real-time monitoring of the system status.
• PV Input: It is compatible with stable power integration systems, which guarantee a stable energy supply for continuous industrial applications.
• System Mode: This is intended to support continuous power for fisheries equipment, aeration systems, and data centers.
• Protection: Built-in smart lithium protection system with safe charge/discharge control and voltage stability.
