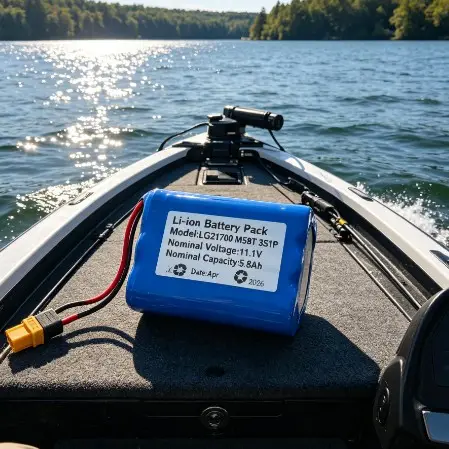

11.1V 5800mAh 3S1P 21700 M58T Li-Ion Battery Pack for RC Boats with Built-In BMS and 12.5A Max Discharge Current

Remote-controlled boats and fishing bait boats need a dependable battery that can provide stable voltage, sufficient current, and long operating time. The 11.1V 5800mAh 3S1P 21700 M58T Li-Ion Battery Pack is designed for compatible RC watercraft that require a practical balance between capacity, output performance, installation size, and electrical protection.

Built with three 21700 lithium-ion cells connected in series, this rechargeable battery pack delivers an 11.1V nominal voltage and a maximum discharge current of 12.5A. Its built-in battery management system helps protect the pack during charging and operation, making it suitable for RC boats, fishing bait boats, electric toy boats, and other portable motor-driven equipment.

Understanding the 3S1P Battery Configuration

The term 3S1P describes how the lithium-ion cells are connected inside the battery pack. “3S” means that three cells are connected in series, while “1P” means that there is one parallel cell group.

A standard lithium-ion cell has a nominal voltage of approximately 3.7V. When three cells are connected in series, the resulting nominal voltage is:

3.7V × 3 = 11.1V

The fully charged voltage of a standard 3S lithium-ion battery pack is normally approximately 12.6V, based on a maximum charging voltage of 4.2V per cell. For this reason, the pack must be charged with a compatible 3S lithium-ion charger.

Because this is a 3S1P configuration, the battery capacity remains 5800mAh. The series connection increases voltage, while the capacity is determined by the selected 21700 cell.

High-Capacity 21700 M58T Cell Design

Compared with many conventional 18650 cells, 21700 cylindrical cells have a larger physical size and can provide higher energy capacity within a single-cell structure. This makes them suitable for applications where longer operating time is more important than achieving the smallest possible battery size.

The 5800mAh capacity helps extend the operating time of compatible RC boats. It can reduce the need for frequent battery replacement or recharging during fishing trips, recreational boating, and outdoor model operation.

Actual runtime will depend on several factors, including:

• Motor power and operating current
• Boat weight and cargo load
• Propeller size and efficiency
• Water resistance and wind conditions
• Operating speed and acceleration frequency
• Controller and wiring efficiency
• Ambient temperature
• Battery age and condition

Running a boat continuously at maximum speed will use energy faster than operating it at moderate speed. Fishing bait boats carrying bait or operating against currents may also consume more power.

12.5A Maximum Discharge Current

The battery pack supports a maximum discharge current of 12.5A. This output is suitable for compatible motors and electronic controllers whose current requirements remain within the battery’s specified operating range.

A sufficient discharge current helps the boat achieve smooth acceleration, stable navigation, and reliable control. However, users should not select a battery based only on voltage and capacity. The continuous current and peak current requirements of the motor and electronic speed controller must also be checked.

If the motor draws more current than the battery can safely provide, the BMS may activate its protection function. Excessive current can also cause voltage drop, heat generation, shorter runtime, and reduced battery service life.

Before replacing an existing battery, confirm the following equipment information:

• Nominal operating voltage
• Maximum motor current
• Continuous operating current
• Battery compartment dimensions
• Connector type and polarity
• Required wire length
• Desired operating time

Correct battery matching is essential for safe and reliable performance.

Built-In BMS Protection

The integrated battery management system provides important electrical protection for the lithium-ion cells. Depending on the final BMS specification, the protection system may help prevent abnormal conditions such as overcharging, over-discharging, overcurrent, and short circuits.

Overcharge protection helps prevent the cell voltage from rising beyond the safe charging limit. Over-discharge protection stops the battery from being drained below the permitted voltage level, which can damage lithium-ion cells.

Overcurrent and short-circuit protection help interrupt the battery output when an abnormal current condition is detected. These functions improve operational safety, but they do not replace correct installation, charging, storage, and handling.

The BMS specifications should be selected according to the current requirements of the RC boat. A protection circuit with an unsuitable current rating may disconnect during acceleration, while an oversized design may not provide the required level of protection.

Applications in RC Boats

The 11.1V 5800mAh battery pack can power compatible remote-controlled boats that require stable energy for propulsion, steering, lighting, sensors, and wireless control systems.

Its 3S voltage configuration is commonly suitable for medium-power motor systems designed for an 11.1V nominal battery. The high-capacity design supports longer boating sessions, while the 12.5A output provides dependable current for normal navigation and acceleration.

The battery should be installed firmly inside the boat to prevent movement during sharp turns, sudden stops, or transport. Loose batteries can damage wires, connectors, and internal electronic components.

Power for Fishing Bait Boats

Fishing bait boats are used to carry bait and fishing lines to selected positions on lakes or ponds. These boats often travel longer distances and may carry additional weight, placing continuous demands on the battery.

A 5800mAh battery provides useful operating capacity for repeated bait delivery trips. Stable voltage helps the boat maintain navigation, remote-control communication, lighting, bait-release mechanisms, and other onboard functions.

Because bait boats operate near water, the battery compartment should be dry, secure, and properly sealed. Standard battery wrapping should not automatically be considered waterproof. A specifically engineered and tested waterproof structure is required when water resistance is necessary.

After every trip, users should inspect the battery compartment for moisture, damaged insulation, loose connectors, corrosion, or unusual heat.

Custom Battery Pack Options

Battery packs for RC boats can be customized to fit different equipment designs. Available customization options may include:

• Connector model and polarity
• Wire gauge and cable length
• Battery pack dimensions
• Outer insulation and wrapping
• BMS current rating
• Charging and discharging ports
• Product labels and branding
• Housing and fixing method

For OEM and ODM projects, customers should provide the battery compartment dimensions, motor specifications, maximum current, connector details, and expected runtime. This information allows the battery structure and electrical design to be matched more accurately to the final product.

Charging and Storage Guidelines

Use only a charger designed for a 3S lithium-ion battery with the correct charging voltage and current. Do not use chargers intended for lead-acid, nickel-metal hydride, LiFePO4, or other battery systems.

Charge the battery in a dry, ventilated location away from heat and flammable materials. Do not charge a battery that is swollen, punctured, wet, deformed, or unusually hot.

For long-term storage, keep the battery partially charged in a cool, dry place. Avoid storing it in direct sunlight, inside a hot vehicle, or near metal objects that could contact the terminals.

Conclusion

The 11.1V 5800mAh 3S1P 21700 M58T Li-Ion Battery Pack provides a high-capacity rechargeable power solution for compatible RC boats, fishing bait boats, and portable watercraft. Its built-in BMS supports electrical protection, while the 12.5A maximum discharge current helps deliver stable and controlled performance.

With customizable connectors, wiring, dimensions, protection circuits, and labels, the pack can support replacement requirements and OEM battery projects. Correct voltage matching, current verification, secure installation, and proper charging remain essential for achieving safe, reliable, and long-lasting operation.
