18650-4S 14.8V 2000mAh 2600mAh 2800mAh 10C Li-Ion Battery Pack for High-Speed RC Cars, Toy Vehicles, and RC Boats

Remote-controlled vehicles require a battery that can provide stable voltage, strong current output, and dependable operating time. The 18650-4S 14.8V 10C Li-Ion Battery Pack is designed for high-speed RC cars, electric toy vehicles, RC boats, fishing bait boats, and other portable equipment that operates under demanding loads.

Available in 2000mAh, 2600mAh, and 2800mAh capacity options, this rechargeable battery pack allows equipment manufacturers and hobby users to select a suitable balance among runtime, battery weight, installation space, and current output. Its four-cell series configuration provides a nominal voltage of 14.8V, while the 10C discharge capability supports motors that require rapid and consistent power delivery.

Understanding the 4S 14.8V Battery Configuration

The term “4S” means that four lithium-ion cells are connected in series. A standard 18650 lithium-ion cell typically has a nominal voltage of approximately 3.7V. Connecting four cells in series produces a nominal pack voltage of 14.8V.

When fully charged, the pack voltage can reach approximately 16.8V, based on a maximum charging voltage of 4.2V per cell. The equipment and charger must therefore be compatible with a 4S lithium-ion battery system.

A series connection increases voltage while the battery capacity remains equal to the capacity of one cell group. Depending on the selected version, this pack is available with capacities of 2000mAh, 2600mAh, or 2800mAh. Higher-capacity models generally provide longer operating time, although they may also have slightly different dimensions and weight.

Strong 10C Discharge Performance

RC motors often draw high current during acceleration, climbing, turning, or operating on water. A battery with insufficient discharge capability may experience excessive voltage drop, unstable motor performance, overheating, or reduced service life.

The 10C discharge rating means the battery is designed to support current output calculated according to its capacity. In theory, a 2000mAh 10C battery corresponds to 20A, a 2600mAh model corresponds to 26A, and a 2800mAh model corresponds to 28A.

However, the actual safe continuous discharge current depends on the selected cells, protection circuit, connector, wire gauge, thermal design, and battery pack structure. These details should be confirmed according to the motor controller and equipment requirements before installation.

With an appropriate pack design, the 10C discharge capability helps provide rapid acceleration, responsive steering, stable motor speed, and reliable performance under changing loads.

Three Capacity Options for Different Runtime Needs

The 2000mAh version is suitable for applications where compact size and lower weight are important. It can be used in smaller RC cars, lightweight toy vehicles, and equipment with limited battery compartments.

The 2600mAh version offers a practical balance between runtime, weight, and installation size. It is suitable for many medium-sized RC vehicles and remote-controlled boats that need dependable operating time without adding excessive weight.

The 2800mAh version is intended for users who prioritize longer runtime. It can support extended driving, boating, or fishing sessions, provided the battery dimensions and weight are compatible with the equipment.

Actual runtime varies according to motor power, vehicle weight, operating speed, terrain, water resistance, controller efficiency, temperature, and user behavior. Continuous high-speed operation consumes energy faster than moderate-speed use.

Suitable for High-Speed RC Cars

High-speed RC cars need a battery that can respond quickly when the motor controller demands additional current. During rapid acceleration or off-road climbing, the current load can increase significantly.

The 14.8V output provides more power than common lower-voltage battery systems and can support compatible high-performance motors. Stable voltage delivery helps maintain speed and control throughout the operating cycle.

For off-road RC vehicles, the battery pack should be installed securely to reduce movement and vibration. The connector must be fully engaged, and the wires should be positioned away from gears, shafts, wheels, and other moving components.

Before replacing an existing battery, users should verify the voltage, connector polarity, battery dimensions, maximum discharge current, and controller compatibility.

Reliable Power for Electric Toy Vehicles

Electric toy vehicles often require frequent acceleration, stopping, and directional changes. A stable lithium-ion battery pack can provide efficient power delivery while supporting a compact product design.

The 18650-4S battery pack can be customized for electric toy cars, tracked vehicles, educational models, robotic toys, and other motor-driven products. Different wire lengths, connector types, labels, and protection circuits can be selected according to the product structure.

For children’s toy applications, the finished battery system should include suitable electrical protection and a secure enclosure. Charging should be performed with a compatible 4S lithium-ion charger under appropriate supervision and according to the product instructions.

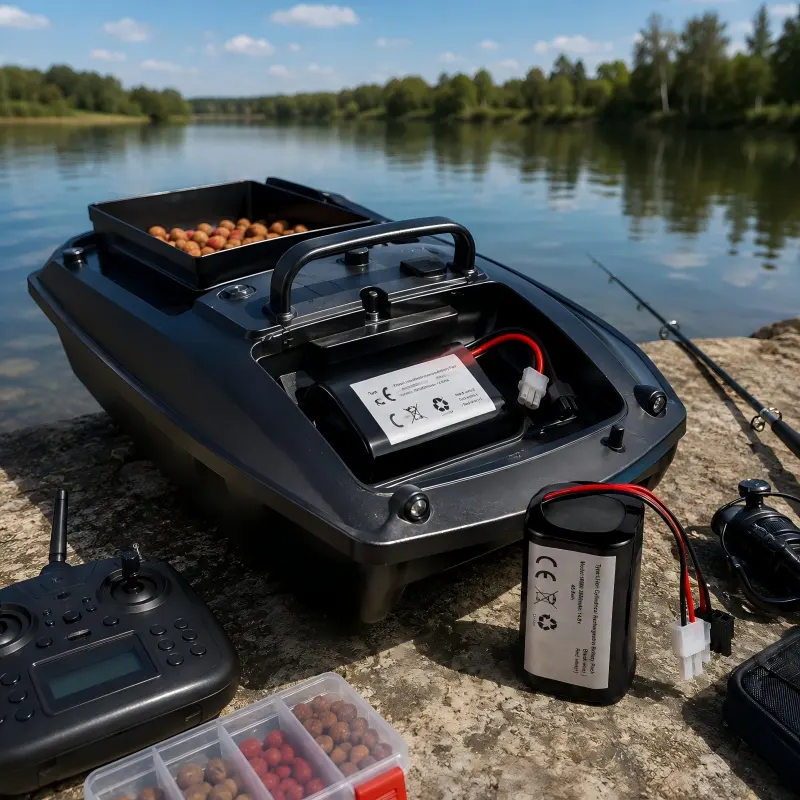

Ideal for RC Boats and Fishing Bait Boats

RC boats place unique demands on batteries because water resistance creates a continuous load on the motor. Strong current output is especially important during acceleration, turning, operation against currents, or carrying additional weight.

The 14.8V 10C battery pack can be used in compatible RC speedboats, electric toy boats, and fishing bait boats. For bait boats, a higher-capacity battery can provide longer operation when transporting bait to different fishing locations.

The battery compartment should remain dry and properly sealed. Even when the battery pack is wrapped, it should not be considered fully waterproof unless a specific waterproof design has been developed and verified. Connectors and exposed terminals should be protected from water, moisture, mud, and corrosion.

After use, the battery and compartment should be inspected for moisture, cable damage, swelling, overheating, or loose connections.

Custom Connectors and Battery Pack Designs

Different RC products may use different connectors, including two-pin, three-pin, or multi-pin plugs. The battery pack can be customized with suitable connector models, wire gauges, cable lengths, polarity arrangements, and protective components.

Additional customization may include:

• Battery capacity and cell selection
• Pack dimensions and arrangement
• Protection circuit specifications
• Connector and terminal types
• Wire length and wire gauge
• Outer wrapping and insulation materials
• Product labels and branding
• Charging and discharging requirements

Providing detailed equipment information helps ensure that the battery is correctly matched to the application. Important details include the available installation space, motor power, operating voltage, continuous current, peak current, connector type, and desired runtime.

Charging, Storage, and Safety Guidelines

A dedicated 4S lithium-ion charger with a maximum charging voltage of 16.8V should be used. Chargers designed for other battery voltages or chemistries may cause incomplete charging, overheating, or safety risks.

The battery should not be short-circuited, punctured, crushed, disassembled, or exposed to fire. Charging should take place in a dry, ventilated area away from flammable materials.

For long-term storage, the battery should be kept partially charged in a cool and dry environment. Users should periodically inspect the pack and avoid leaving it fully discharged for extended periods.

Stop using the battery immediately if it becomes swollen, damaged, unusually hot, or produces an abnormal odor.

Conclusion

The 18650-4S 14.8V 2000mAh, 2600mAh, and 2800mAh 10C Li-Ion Battery Pack provides a versatile power solution for high-speed RC cars, electric toy vehicles, RC boats, and fishing bait boats.

Its 4S configuration delivers a nominal voltage of 14.8V, while the available capacity options allow users to choose the appropriate runtime and weight. With customizable connectors, wiring, protection circuits, dimensions, and labels, the battery pack is suitable for replacement requirements as well as OEM and ODM projects.

Correct voltage matching, current verification, secure installation, and proper charging are essential for achieving reliable performance and safe long-term operation.
