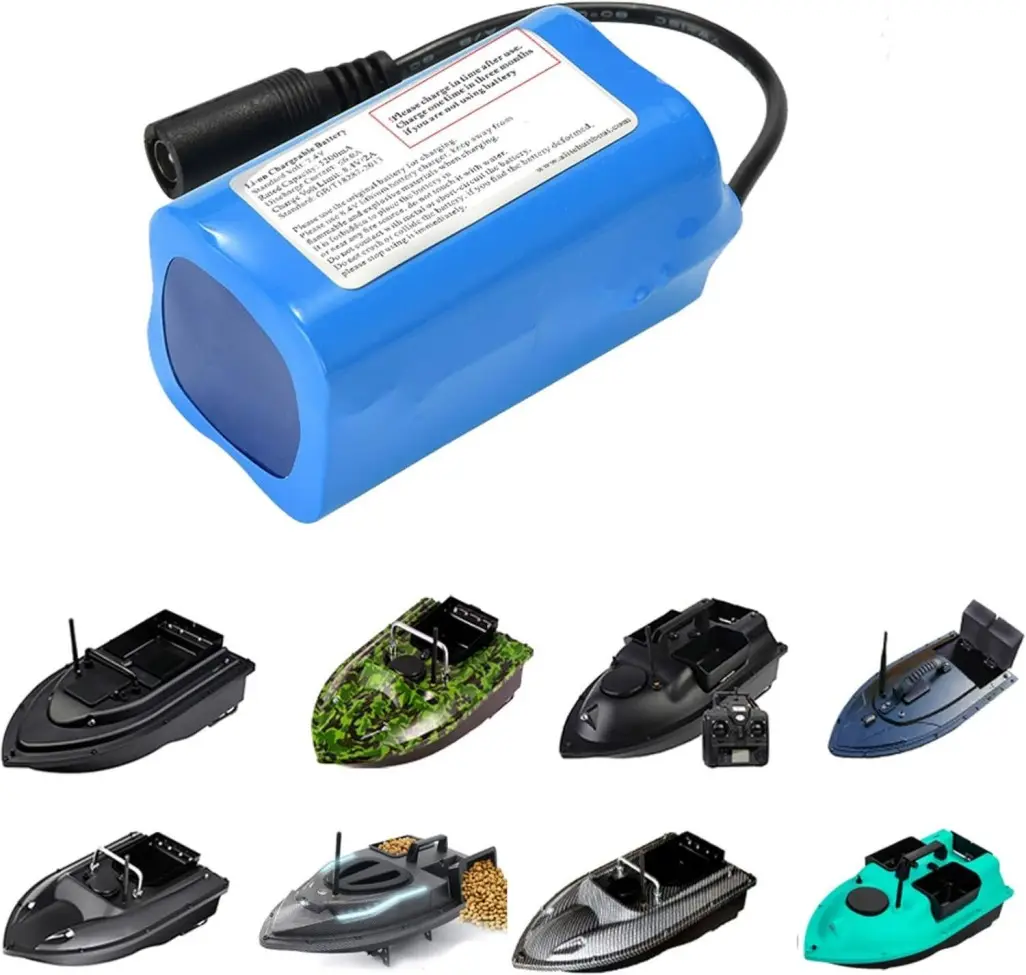

7.4V 10000mAh 21700 2S2P Li-Ion Battery Pack for Fishing Bait Boats with Smart BMS, Waterproof Design, and Long Runtime

Fishing bait boats need a dependable power source that can support long-distance navigation, repeated bait delivery, onboard lighting, remote-control systems, and bait-release mechanisms. The 7.4V 10000mAh 21700 2S2P Li-Ion Battery Pack is designed for compatible fishing bait boats and other remote-controlled watercraft that require stable output and extended operating time.

Built with high-capacity 21700 lithium-ion cells, this rechargeable battery pack combines a 7.4V nominal voltage with a large 10000mAh capacity. Its smart battery management system provides essential electrical protection, while the moisture-resistant pack design helps the battery perform reliably in outdoor fishing environments.

Understanding the 2S2P Battery Configuration

The term 2S2P describes the internal cell arrangement. “2S” means two cell groups are connected in series, while “2P” means two cells are connected in parallel within each group.

A standard lithium-ion cell normally has a nominal voltage of approximately 3.7V. Connecting two cell groups in series produces a nominal pack voltage of 7.4V. When fully charged, the pack voltage typically reaches approximately 8.4V, based on a maximum charging voltage of 4.2V per cell.

The parallel arrangement increases the available capacity. In this battery, the completed 2S2P structure provides a total rated capacity of 10000mAh. This combination makes the pack suitable for equipment that needs moderate voltage and longer operating time.

Before installation, users should confirm that the bait boat motor, electronic speed controller, charger, and onboard electronics are compatible with a 7.4V nominal lithium-ion battery.

High-Capacity 21700 Lithium-Ion Cells

The battery uses 21700 cylindrical lithium-ion cells. Compared with many traditional 18650 cells, 21700 cells have a larger physical size and can store more energy in each cell, depending on the selected cell model.

This high-capacity cell format helps the battery provide longer runtime without requiring a large number of individual cells. It can therefore offer a practical balance among capacity, pack size, weight, and structural reliability.

A 10000mAh battery can support longer fishing sessions and more bait-delivery trips than lower-capacity alternatives. However, actual runtime depends on several operating conditions, including:

• Motor power and current consumption
• Boat speed and acceleration frequency
• Bait and fishing-line load
• Traveling distance
• Water currents, waves, and wind
• Propeller efficiency
• Onboard lighting and electronic accessories
• Battery condition and ambient temperature

Operating continuously at maximum speed will drain the battery faster than steady, moderate-speed navigation. Carrying heavy bait loads or operating against strong currents can also increase power consumption.

Long Runtime for Fishing Bait Boats

Fishing bait boats transport bait and fishing lines to locations that may be difficult to reach by casting. Reliable battery capacity is important because the boat may need to make several return trips during one fishing session.

The 10000mAh capacity supports longer operating periods and reduces the need to change or recharge the battery frequently. This can be especially useful during overnight fishing, large-lake fishing, or sessions in which the boat must travel considerable distances.

Stable battery output also helps support navigation, steering, wireless communication, LED lights, GPS modules, fish-finding electronics, and electrically controlled bait hoppers when these features are installed.

Users should still monitor the battery level and return the boat before the pack reaches its low-voltage protection point. Allowing enough reserve capacity reduces the risk of the boat stopping far from shore.

Smart BMS Protection

The integrated smart battery management system helps protect the lithium-ion cells during charging, discharging, and storage. Depending on the selected BMS specifications, the system may provide protection against:

• Overcharging
• Over-discharging
• Excessive current
• Short circuits
• Cell-voltage imbalance
• Abnormal temperature conditions

Overcharge protection helps prevent the cells from exceeding their permitted voltage. Over-discharge protection stops the output when the cell voltage falls too low, helping reduce permanent battery damage.

Overcurrent and short-circuit protection can disconnect the battery when the load exceeds the safe operating range. Cell-balancing functions help maintain more consistent voltage among the cell groups during charging.

The BMS must match the motor and controller requirements. If the motor demands more current than the BMS can provide, the protection circuit may disconnect the output during acceleration or heavy-load operation. Customers should therefore provide the continuous and peak current requirements when ordering a customized pack.

Moisture-Resistant and Waterproof Pack Design

Fishing bait boat batteries operate in environments where moisture, splashes, mud, and condensation may be present. A waterproof or moisture-resistant design can help protect the cells, wiring, insulation, and BMS from environmental exposure.

Protective methods may include sealed outer wrapping, insulated terminals, protected cable outlets, moisture-resistant housings, and sealed connector structures.

However, the term “waterproof” should be supported by the actual enclosure design and test standard. A wrapped battery pack should not automatically be considered suitable for full immersion. Customers requiring a particular protection level should confirm the applicable IP rating and testing requirements before production.

The bait boat battery compartment should also remain properly sealed. After each fishing session, users should check the compartment and battery for water, condensation, damaged insulation, loose connectors, or corrosion.

Stable Power for Boat Motors and Electronics

Bait boats require stable voltage to maintain predictable motor speed and accurate steering. Significant voltage drop may reduce propulsion performance, interfere with electronic systems, or shorten the boat’s operating range.

The 2S2P configuration supports steady power delivery for compatible 7.4V equipment. The parallel cell arrangement can also help distribute the current load between cells, provided the battery uses properly matched cells and a suitable pack structure.

The battery should be secured firmly inside the boat. Movement during transportation, turning, or operation on rough water may damage wires and connectors. Soft padding or a dedicated fixing bracket can reduce vibration while keeping the battery away from sharp edges and moving parts.

Customization for Different Bait Boat Models

Fishing bait boats use different battery compartments, connectors, wiring systems, and discharge requirements. The 7.4V 10000mAh battery pack can be customized according to the equipment design.

Available customization options may include:

• Battery dimensions and cell arrangement
• Connector type and polarity
• Charging and discharging ports
• Wire gauge and cable length
• BMS current and protection settings
• Waterproof housing or protective wrapping
• Mounting and fixing structure
• Product labels and private branding

For accurate customization, customers should provide the available installation space, continuous current, maximum current, motor specifications, connector photographs, wire length, expected runtime, and environmental requirements.

Charging and Storage Recommendations

A compatible 2S lithium-ion charger with an 8.4V maximum charging voltage should be used. Chargers intended for other voltages or battery chemistries may damage the battery or create safety risks.

Charge the pack in a dry, ventilated area away from heat and flammable materials. Do not charge a battery that is swollen, leaking, punctured, wet, deformed, or unusually hot.

For long-term storage, keep the battery partially charged in a cool and dry place. Avoid leaving it completely discharged for extended periods. Inspect the battery regularly and protect the connector terminals from accidental contact with metal objects.

Conclusion

The 7.4V 10000mAh 21700 2S2P Li-Ion Battery Pack offers a high-capacity power solution for compatible fishing bait boats and remote-controlled watercraft. Its 10000mAh capacity supports longer fishing sessions, while the smart BMS provides essential electrical protection.

A moisture-resistant or verified waterproof design can improve reliability in outdoor fishing environments. With customizable connectors, wiring, dimensions, BMS settings, housings, and labels, the battery can support replacement, OEM, and ODM bait boat projects.

Correct voltage matching, current verification, suitable charging, secure installation, and proper moisture protection remain essential for safe, consistent, and long-lasting battery performance.
