11.1V 3500mAh 18650 Battery Pack for CCTV Camera Backup Power

A reliable surveillance system depends on more than cameras, recorders, and network connections. Power continuity is just as important. When the main power supply is interrupted, even a short outage can leave a CCTV system unable to record important activity. This is where an 11.1V 3500mAh 18650 battery pack can become a practical backup power solution for CCTV cameras, security monitoring systems, and other electronic surveillance equipment.

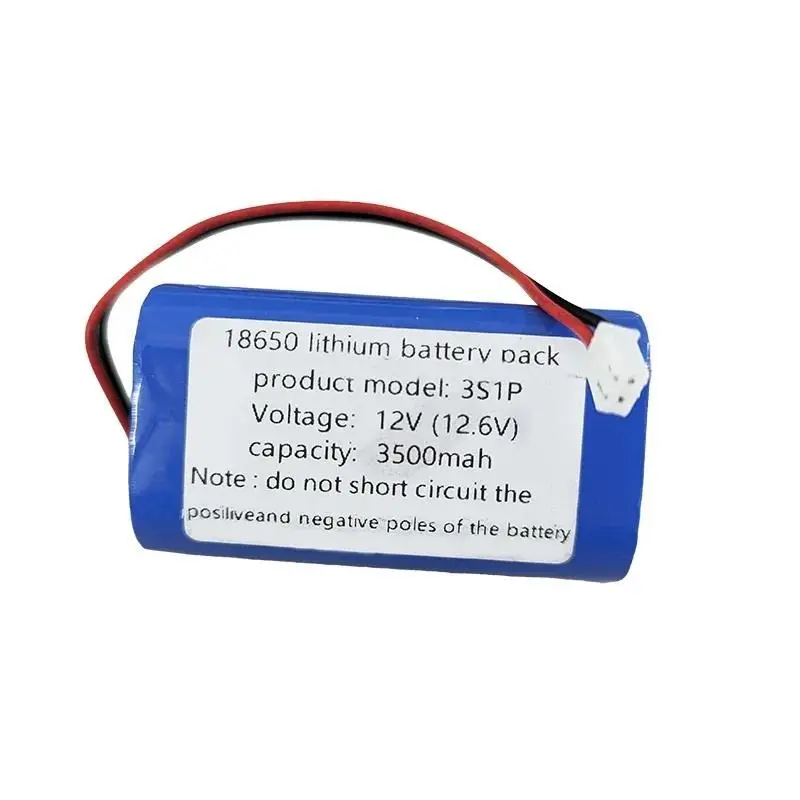

Built in a 3S1P configuration with rechargeable 18650 lithium-ion cells, this battery pack combines compact size, rechargeable performance, and an 11.1V nominal output. For equipment manufacturers and system integrators, the pack can also be customized around connectors, wiring, protection circuits, dimensions, and other application requirements.

What Is a 3S1P 11.1V 18650 Battery Pack?

The term 3S1P describes the electrical arrangement of the battery cells. Three lithium-ion cells are connected in series, creating an 11.1V nominal battery pack. The 1P configuration means there is one cell in each parallel group.

For this battery pack, the capacity is 3500mAh. This combination makes it suitable for devices that require a compact rechargeable DC power source without the larger dimensions associated with higher-capacity multi-parallel battery packs.

The use of cylindrical 18650 lithium-ion cells also makes this battery format familiar to many equipment designers. However, selecting a battery for surveillance equipment should never be based only on voltage and capacity. Load current, available installation space, operating environment, charging method, connector design, and expected backup duration all need to be considered.

Why CCTV Systems Need Backup Battery Power

CCTV cameras are often installed to provide continuous monitoring. If the surveillance system stops operating whenever mains electricity is lost, there may be gaps in video recording exactly when monitoring is most important.

A CCTV camera backup battery can provide temporary power during mains interruptions, equipment switching, or other short-term power events. Depending on the overall system architecture, the battery may be integrated into the camera, a dedicated backup module, a portable monitoring unit, or another part of the security system.

The required backup duration will depend on the camera's power consumption and the total energy available from the battery. This is why battery selection should be based on actual device specifications rather than simply choosing the highest available capacity.

Key Features for Surveillance Applications

An 11.1V lithium-ion battery pack designed for CCTV equipment needs to provide more than rechargeable energy storage. Mechanical integration and electrical protection are also important parts of the battery design.

A suitable protection circuit can help protect the battery pack against conditions such as overcharge, over-discharge, overcurrent, and short circuit. The exact protection requirements should be determined according to the equipment design and operating conditions.

The pack's compact 3S1P construction also allows it to fit into applications where internal space is limited. This can be useful for compact monitoring equipment, portable security devices, wireless surveillance systems, and integrated backup power modules.

Connector selection is another important consideration. Different CCTV and security products may use different plug types, polarity arrangements, cable lengths, and wire gauges. For OEM projects, these details should be confirmed before production.

Applications Beyond CCTV Cameras

Although CCTV backup power is one of the main applications, a 3S1P 18650 battery pack can also be considered for other electronic products with compatible electrical requirements.

Typical applications may include security surveillance cameras, wireless monitoring equipment, video surveillance systems, portable security devices, access control equipment, and customized electronic backup power systems.

In each case, engineers should verify voltage, discharge current, charging requirements, operating temperature, physical dimensions, and required operating time before selecting the battery pack.

Using a battery with the correct voltage but an unsuitable connector, discharge capability, or charging specification can create integration problems. Application matching should therefore come before final battery selection.

Why OEM Battery Customization Matters

Standard battery specifications do not always match the mechanical and electrical design of finished equipment. This is especially true for security products where battery compartments, wiring routes, and internal PCB layouts may vary significantly.

For an OEM 18650 battery pack, customization can include connector type, wire length, battery dimensions, protection circuit specifications, insulation materials, labeling, and packaging.

The first step in a custom project should be to provide the battery manufacturer with accurate application information. Useful details include the required nominal voltage, capacity target, maximum operating current, available installation dimensions, connector model, charging method, and equipment application.

Providing a sample battery or drawing can also help reduce uncertainty during battery development.

What to Check Before Choosing a CCTV Battery Pack

Before ordering an 11.1V rechargeable battery for a surveillance system, confirm the electrical requirements of the device first. The battery voltage should match the system design, while the capacity should provide a reasonable balance between backup duration, battery size, and weight.

It is also important to check the peak and continuous current requirements of the equipment. CCTV products with additional functions such as infrared illumination, wireless communication, motors, or other accessories may have different power demands under different operating conditions.

Physical fit should also be checked carefully. A battery may have the correct electrical specifications but still be unsuitable if its dimensions, wire orientation, or connector interfere with the equipment enclosure.

For replacement applications, the existing battery label, connector, dimensions, polarity, and equipment model can provide useful reference information.

A Practical Battery Solution for Security Equipment

The 11.1V 3500mAh 18650 battery pack offers a compact rechargeable power option for CCTV cameras and security monitoring equipment requiring standby power. Its 3S1P configuration provides an 11.1V nominal output, while the 3500mAh capacity makes it suitable for applications where space and backup energy need to be balanced.

For OEM and ODM projects, the battery can be developed around the requirements of the finished product rather than treated as a generic component. Connector type, wiring, protection design, dimensions, and packaging can all be considered as part of the battery integration process.

For surveillance equipment manufacturers and security system developers, choosing the right battery begins with the device itself. Confirm the voltage, current, available space, charging system, and required backup time first, then select or customize the battery pack around those conditions. This approach helps create a more reliable and practical backup power solution for CCTV and security applications.
