Rechargeable Battery Pack for RC Toys: Battery Requirements for High-Speed RC Cars

A suitable Rechargeable Battery Pack for RC Toys must provide the correct voltage, sufficient current, controlled voltage sag, practical runtime, safe charging, and a design that fits the vehicle. For high-speed RC cars, selection should be based on the motor, electronic speed controller (ESC), load profile, battery compartment, connector system, and operating time—not capacity alone.

Why High-Speed RC Cars Need More from a Battery

When a RC car is used at high speeds, it creates a load on the components. Each terrain creates a varying load, as does launching, accelerating, climbing, stalling, and driving on rolling uneven grass. A weak battery leads to weak acceleration, resets on the ESC, overheating, and voltage cut off.

When shopping for a Rechargeable Battery Pack for RC Toys, there are many factors to consider including:

•Nominal / Maximum Charging Voltage

•Continuous / Peak Current

•Capacity

•Weight and Size

•Cell and Pack Resistance

•Connector and Cable Losses

•Protection and Vibration

•Mounting

Core Battery Requirements

A larger mAh rating does not indicate a better Rechargeable Battery Pack for RC Toys. A large capacity pack can still underperform if its cells, conductors, connectors and circuit protection cannot support and/or carry the required load.

Voltage and 4S Li-Ion Architecture

Lithium-ion cells have a nominal voltage of 3.6 to 3.7 V. By putting four cells in series you'll get a 4S Li-ion battery pack in series. A 4S battery pack has a nominal voltage of roughly 14.8 V with a charge voltage limit of 16.8 V.

The maximum input voltage at a full charge must be checked first against compatibility. Other factors such as motor KV, gearing, wheel diameter, vehicle mass, mechanical load, also impact speed. Increased voltage by itself will not yield increased performance.

Discharge Rate and Current Margin

Theoretical current is commonly estimated as:

Discharge Current = Capacity (Ah) × C-Rate

The current rating should state whether it is continuous or peak. Engineers should also assess peak duration, acceleration frequency, ESC cutoff settings, ambient temperature, temperature rise, and aging margin. A pack designed only around average motor current may still fail during launch or wheel stall.

Capacity, Runtime, and Vehicle Dynamics

Capacity affects runtime, mass, center of gravity, and installation space. Actual runtime varies with throttle use, gearing, terrain, rolling resistance, motor efficiency, temperature, and battery age.

The ideal Rechargeable Battery Pack for RC Toys should fit in the battery bay allowing the correct balance of the vehicle. A 2000 mAh battery pack should be used in smaller RC vehicles, and a 2600mAh pack should be used in most other RC vehicles. The 2800mAh pack will give the best runtime and will continue to perform at the maximum theoretical current draw of 10C.

Internal Resistance and Voltage Sag

Under load, pack voltage falls according to total resistance:

Voltage Drop = Current × Total Resistance

Total resistance includes the cells, welds, interconnects, wires, and connector. Excessive resistance causes:

•Greater voltage sag during acceleration

•More heat generation

•Earlier ESC cutoff

•Reduced motor power

An internal resistance value such as 240mΩ should be interpreted with test temperature, state of charge, measurement method, and whether it represents one cell or the complete pack. It should not be called "low" without a defined comparison.

Connector, Wire, and Pack Integration

A Rechargeable Battery Pack for RC Toys must provide a complete current path capable of carrying the intended load.

Connector and Wire Design

The connector should match the ESC and be rated above expected continuous current. Cable selection should consider wire gauge, cable length, peak current, allowable temperature rise, bend radius, and strain relief. Long or undersized wires increase resistance and heat.

Mechanical Integration

The pack must fit the available length, width, and height while leaving space for the connector and cable bend. High-speed vehicles also require secure retention against vibration, impact, and sudden directional changes.

Protection and Charging

Depending on the platform, the battery may include:

•Overcharge and over-discharge protection

•Overcurrent and short-circuit protection

•Temperature monitoring

•Cell balancing

Protection thresholds must be coordinated with normal startup current. An undersized circuit may disconnect the pack during legitimate acceleration.

A 4S Rechargeable Battery Pack for RC Toys requires a compatible 16.8V lithium-ion charger using the correct current limit and CC/CV termination. Chargers for another series count or chemistry should not be used.

Gloflux Battery Design for RC Applications

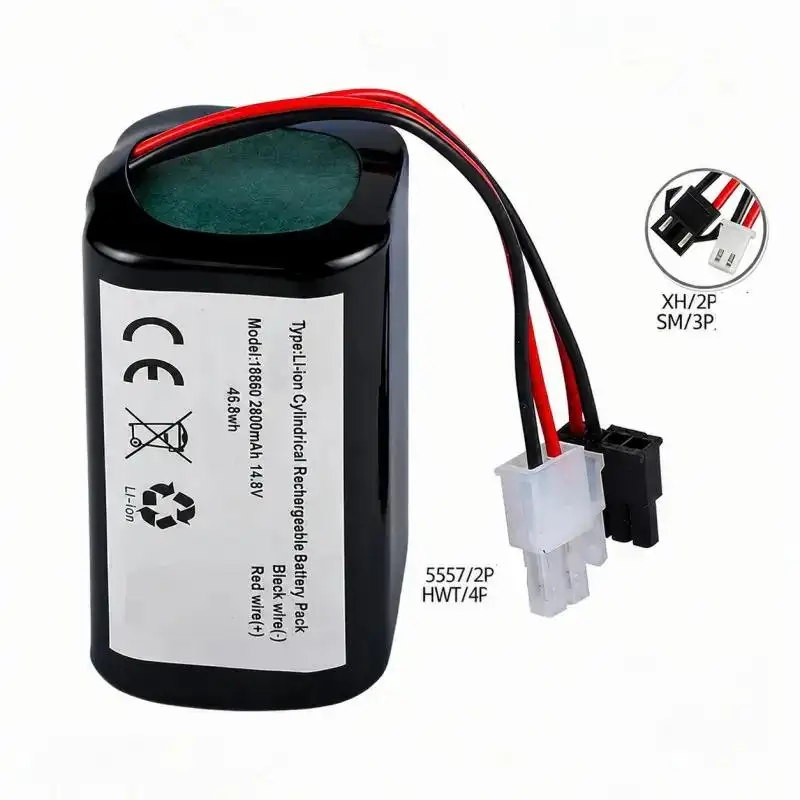

Gloflux offers flexible lithium-ion options for high-speed RC cars, electric toys, RC boats, and other remote-controlled devices. The 4S design includes either 14.8V nominal, 16.8V charging, 2000mAh, 2600mAh, or 2800 mAh capacity, and are rated at 10C.

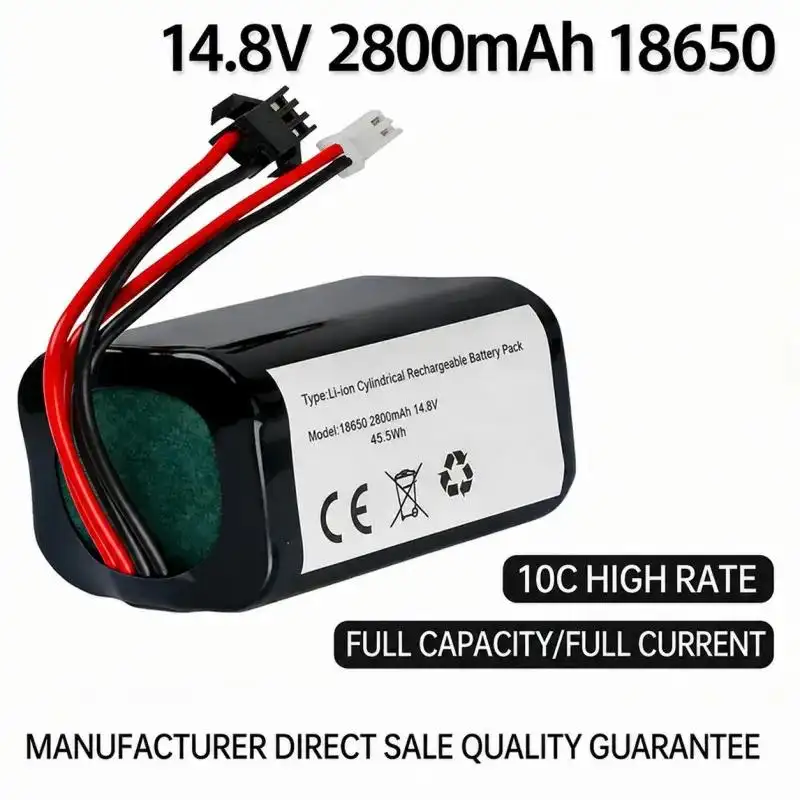

For a 2800 mAh battery, 10C would put the total discharge at 28 Amps. Capability will need to be verified through the cells, protection, connector, wire, and temperature. Each of these will be discussed once a design is proposed.

Gloflux allows the following customizations:

•Connector type and polarity

•Wire gauge, length, and outlet direction

•Protection and balancing

•Pack dimensions and shape

•Capacity, labels, and OEM interfaces

Final Selection Checklist

When considering a Rechargeable Battery Pack, there are several factors to take into account. For example, Warning for RC toys. Nominal voltage, full-charge voltage, continuous current (discharge), peak current, and duration, target runtime, dimensions, connector type, wire requirements, temperature range, and charging method are all important considerations.

Gloflux can work on a 14.8V solution for a new RC product or give a solution for a replacement for this. For an OEM assessment on the battery, the ESC rating and current profile, battery-bay dimensions, and connector information are required.

FAQs

Q1. What Rechargeable Battery Pack for RC Toys does Gloflux provide?

Gloflux offers 4S lithium-ion battery packs configured to 14.8V nominal, 16.8V charging, and 2000mAh, 2600mAh, or 2800mAh. These battery packs are suitable for high-speed RC cars and boats and other RC vehicles.

Q2. Can Gloflux customize a Rechargeable Battery Pack for RC Toys?

Gloflux can modify battery pack capacity, the type of connector used, the gauge of wires, wire length, the direction of the outlets, the protection circuit, the overall size and shape of the pack, labels, and the type of electrical interconnects for the pack. The customizations are based on the RC devices.

Q3. What information does Gloflux need for an OEM battery project?

Gloflux requires nominal and charging voltages, continuous and peak currents, duration of the peak current, required runtime, dimensions of the battery compartment, type of connector, wire size and length, operating temperature, and expected order volume.

Q4. What capacity options are available for Gloflux RC toy batteries?

Gloflux RC toy batteries are available in 2000mAh, 2600mAh, and 2800mAh options. The choice of capacity depends on the expected runtime, available installation space, RC toy vehicle weight, the load on the motor, and the expected discharge current.

Q5. How much current can the Gloflux 10C battery design provide?

A 2000mAh battery can theoretically provide 20A, 2600mAh battery can theoretically provide 26A, and a 2800mAh battery can theoretically provide 28A. Final rating will
