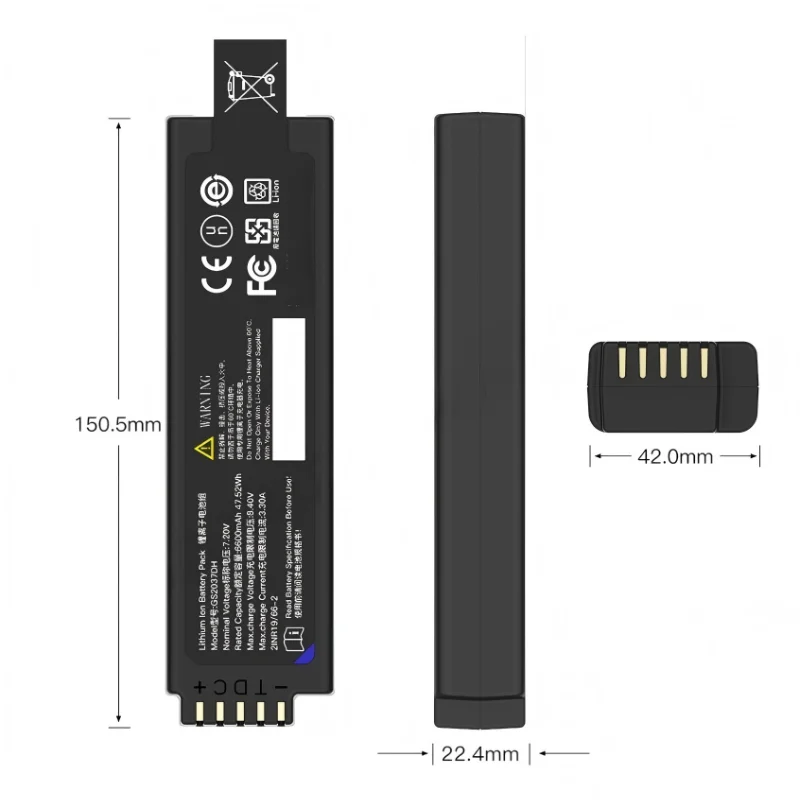

KYS2037DH Toolless Battery Replacement

The Toolless Battery Replacement is a multi-cell lithium-ion-based battery that incorporates a smart control system. A pack is assembled by engineers in a series-parallel cell arrangement to stabilize electrical output. The battery management system is an internal system that constantly checks the voltage, current, and temperature. In the meantime, status data is sent over the communication lines using the SMBus protocol to coordinate the system level. Real-time protective logic circuits react to abnormal conditions.

Materials and Cell Structure

The uniformity in electrochemical properties guides the choice of cylindrical lithium-ion cells by manufacturers. The lithium metal oxide compounds are used as cathode layers, and the anode matrix is made of graphite. The negative side has copper foil to collect the flow of electrons, and the positive electrode is supported by aluminum foil. A microporous separator permits the transfer of ions but prevents direct contact between electrodes. Moreover, the enclosure is made of reinforced polymer or aluminum casing to ensure structural integrity in the face of mechanical forces.

Electrical Configuration and Control System

Technicians interface cells into either controlled 2S or multi-string architectures based on output requirements. Spot welding is used to fix nickel tabs and minimize resistance at joint points. The battery management system does real-time balancing of all cell groups. It also controls the charge and discharge limits by switching with MOSFETs. Moreover, the logic software monitors the number of cycles and dynamically changes safety limits. Wiring harnesses have strain reliefs to prevent disconnection during vibration.

Thermal Management and Mechanical Design

Designers also incorporate thermal pathways to spread the heat throughout the pack. Temperature flow between modules is directed by air gaps and conductive plates. Passive cooling structures help to dissipate heat without moving components in certain designs. The housing is compression-resistant and does not subject internal parts to external shock. Service interfaces enable inspection and reading of data without breaking down the pack.

Standards and Compliance

Manufacturing is based on IEC 62133, UN38.3, and ISO safety standards. Electrical endurance testing, insulation resistance testing, and thermal cycling testing are all performed on each unit. Traceability labeling is also used by manufacturers to control batches. These processes guarantee uniform manufacturing quality and controlled transport certification throughout the international supply chains.

Product Features

• 2S2P Removable Lithium-ion Battery Pack
• Complies with regulations in multiple regions worldwide
• Standard SMBus v1.1 interface
• Integrated LED State of Charge (SOC) indicator
• Uses Panasonic cells, boasting the highest energy density and stability on the market, meeting JEITA charging optimization rules
• Comprehensive safety protection features, including overcharge, over-discharge, overcurrent, over-temperature, and short-circuit protection
• Equipped with a balancing function to effectively improve battery life
• TI Precise Battery Calculation

Product Application Areas

• Class III Medical Devices
• Precision Measuring Instruments
• Industrial Computers
• Non-destructive Testing Equipment
• Portable industrial and medical devices, etc.
