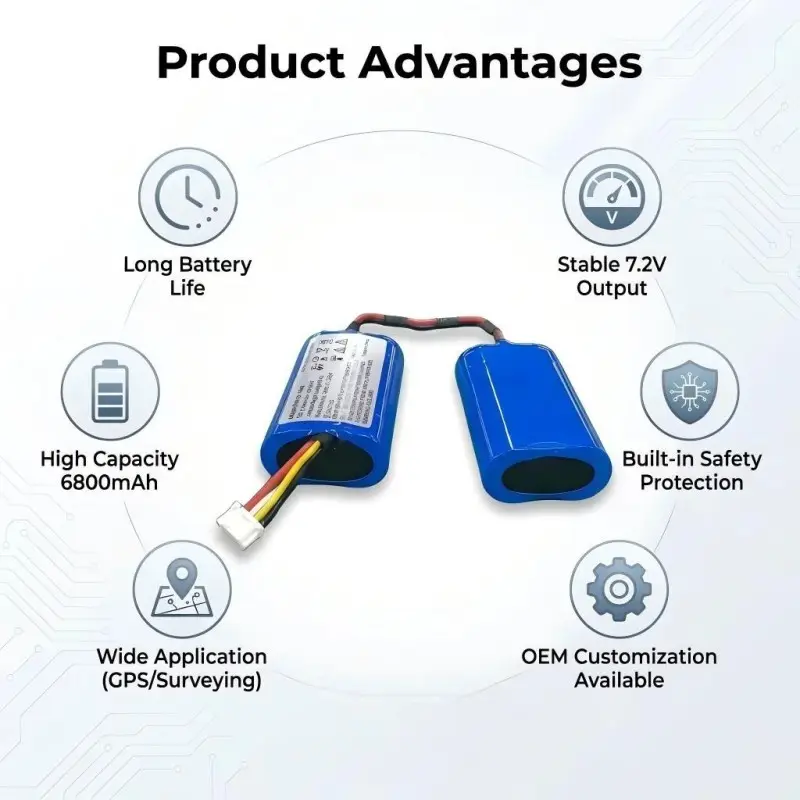

Custom 7.2V 6800mAh 18650 Li-Ion Battery Pack for Surveying Instruments, GPS and RTK Navigation Equipment

Professional surveying and positioning equipment requires a stable, durable, and long-lasting power source. The 7.2V 6800mAh 18650 Li-Ion battery pack is designed for GPS receivers, GNSS RTK surveying instruments, navigation terminals, mapping devices, and other portable measurement equipment. With high energy density, reliable voltage output, and flexible OEM customization, this rechargeable battery solution can support extended fieldwork and demanding industrial applications.

Surveyors, engineers, construction teams, and agricultural operators often use GPS RTK equipment in outdoor environments for several hours each day. Reliable battery performance is essential because unexpected shutdowns may interrupt data collection, reduce positioning accuracy, and delay project schedules. A properly designed 7.2V 6800mAh battery pack helps equipment operate continuously while keeping the overall device portable and convenient to use.

Why GPS RTK Equipment Needs Stable Power

GPS RTK equipment performs several energy-consuming functions at the same time. It receives signals from multiple satellite navigation systems, processes correction data, calculates real-time coordinates, communicates with base stations or CORS networks, and stores measurement results.

Many modern receivers also use Bluetooth, Wi-Fi, cellular communication, UHF radios, touchscreens, and internal data processors. These functions require a power supply capable of maintaining stable voltage under varying loads.

An unstable battery may cause communication interruptions, system restarts, incorrect data storage, or loss of connection with the RTK correction service. For professional users working on land surveying, construction layout, infrastructure mapping, or precision agriculture, these interruptions can affect both productivity and measurement efficiency.

The 7.2V 6800mAh 18650 Li-Ion battery pack is developed to provide dependable energy for such applications. Its capacity supports long operating periods, while its rechargeable design makes it suitable for daily professional use.

High-Capacity 6800mAh Design

The 6800mAh capacity provides longer runtime than many standard portable battery packs. This makes it suitable for equipment that must operate throughout a full working session without frequent battery replacement or recharging.

Actual runtime depends on the power consumption of the device. A GPS RTK receiver with cellular communication, a bright display, and continuous correction-data transmission will consume more power than a basic positioning terminal. Environmental temperature, battery age, signal strength, and software settings can also affect operating time.

Equipment manufacturers should perform real-device discharge testing before confirming the final battery specification. Field testing helps determine whether the battery can support the required working duration under normal and peak-load conditions.

For end users, a high-capacity battery can reduce downtime and the number of spare batteries required during field operations. This is particularly useful in remote areas where charging facilities may not be readily available.

Reliable 18650 Lithium-Ion Cells

The battery pack uses rechargeable 18650 lithium-ion cells, which are widely used in industrial electronics because of their high energy density, stable performance, and mature manufacturing technology.

Compared with many older rechargeable battery chemistries, lithium-ion cells can store more energy in a compact and lightweight structure. This is important for portable surveying equipment because operators may carry the receiver, controller, measuring pole, tripod, and other accessories throughout the day.

High-quality 18650 cells can also provide consistent discharge performance when properly selected and matched. During battery assembly, cells should be checked for voltage, capacity, and internal resistance. Closely matched cells help the battery pack charge and discharge more evenly, improving reliability and service life.

Cell quality is especially important for professional devices. Low-quality or poorly matched cells may cause reduced capacity, uneven discharge, excessive heat, or early battery failure.

Stable 7.2V Output for Portable Instruments

The nominal 7.2V configuration is suitable for many GPS, GNSS, RTK, navigation, and industrial handheld devices. The battery voltage must match the electrical design of the equipment and the charging system.

Before selecting a replacement or custom battery, buyers should confirm the nominal voltage, charging voltage, connector polarity, continuous discharge current, peak current, and mechanical installation dimensions.

Using an incompatible battery may cause unstable operation or damage the equipment. For example, the correct voltage alone does not guarantee compatibility. The connector type, wiring sequence, protection circuit, communication terminals, and housing structure may also need to match the original battery.

For OEM projects, the battery supplier should evaluate both the electrical and mechanical requirements before proposing a final solution.

Battery Protection Functions

A rechargeable lithium-ion battery pack should include a suitable battery protection circuit. Depending on the application, the protection system may help prevent overcharge, over-discharge, overcurrent, and short circuit.

Overcharge protection helps prevent cell voltage from rising above the safe operating range. Over-discharge protection helps stop the battery from reaching an excessively low voltage, which may damage the cells. Overcurrent and short-circuit protection can disconnect the battery when abnormal electrical conditions occur.

The protection board must be selected according to the normal operating current and peak current of the GPS RTK equipment. If the protection-current limit is too low, the battery may shut down during normal use. If the limit is too high, the protection system may not respond appropriately to abnormal loads.

Additional functions may include temperature monitoring, battery status communication, charging control, fuel-gauge indication, or smart battery management, depending on the device requirements.

Applications for the Battery Pack

The 7.2V 6800mAh 18650 Li-Ion battery pack can be used in a wide range of professional and industrial devices. Common applications include:

• GNSS RTK surveying receivers
• GPS navigation equipment
• Land surveying instruments
• Mapping and geographic data collectors
• Construction positioning devices
• Agricultural guidance systems
• Portable industrial terminals
• Handheld testing instruments
• Outdoor inspection equipment
• OEM measurement and navigation products

Each application may have different current, size, temperature, and communication requirements. Therefore, compatibility should always be verified before mass production.

OEM and ODM Customization

One of the main advantages of a custom battery pack is the ability to match the specific design of the equipment. OEM and ODM customization options may include battery capacity, cell brand, pack dimensions, housing material, connector type, wire length, charging port, protection board, label, logo, and packaging.

For devices with limited installation space, the internal cell arrangement can be optimized to fit the available compartment. Some products may require a durable plastic enclosure for frequent battery replacement, while others may use a shrink-wrapped battery installed inside the equipment.

Connector polarity must be carefully confirmed. Even when two connectors look identical, the wire sequence may be different. Providing drawings, original battery samples, device models, connector photos, and technical specifications can help reduce development errors.

Quality Control and Testing

Reliable battery performance depends on strict quality control. A professional production process may include incoming cell inspection, voltage testing, internal resistance testing, capacity matching, welding inspection, protection-board testing, charge-discharge testing, and final appearance inspection.

Finished packs should also be tested for connector fit, output voltage, charging behavior, protection response, and device compatibility. When possible, testing the battery in the actual GPS RTK equipment is recommended.

For transportation and international sales, buyers should also confirm applicable shipping documentation and certification requirements. Lithium batteries may require specific packaging, labels, test reports, and transport procedures.

Choosing the Right Battery Supplier

When selecting a battery supplier, buyers should evaluate more than price. Important factors include cell quality, engineering support, customization ability, quality-control procedures, production consistency, communication efficiency, and long-term supply capability.

The 7.2V 6800mAh 18650 Li-Ion battery pack offers a practical rechargeable power solution for GPS RTK equipment and professional surveying instruments. With stable output, extended capacity, protective circuitry, and flexible customization, it can help equipment manufacturers and users improve field runtime, reduce downtime, and maintain dependable performance in demanding working environments.
