18650 3S2P 12V 4400mAh Lithium-Ion Battery Pack for Portable Sprayers

Portable electric sprayers are widely used in gardening, agriculture, pest control, plant care, sanitation, and disinfection. Their performance depends heavily on the battery that powers the internal pump. A suitable battery must be compact enough for portable equipment while still delivering stable voltage, reliable current, and sufficient runtime.

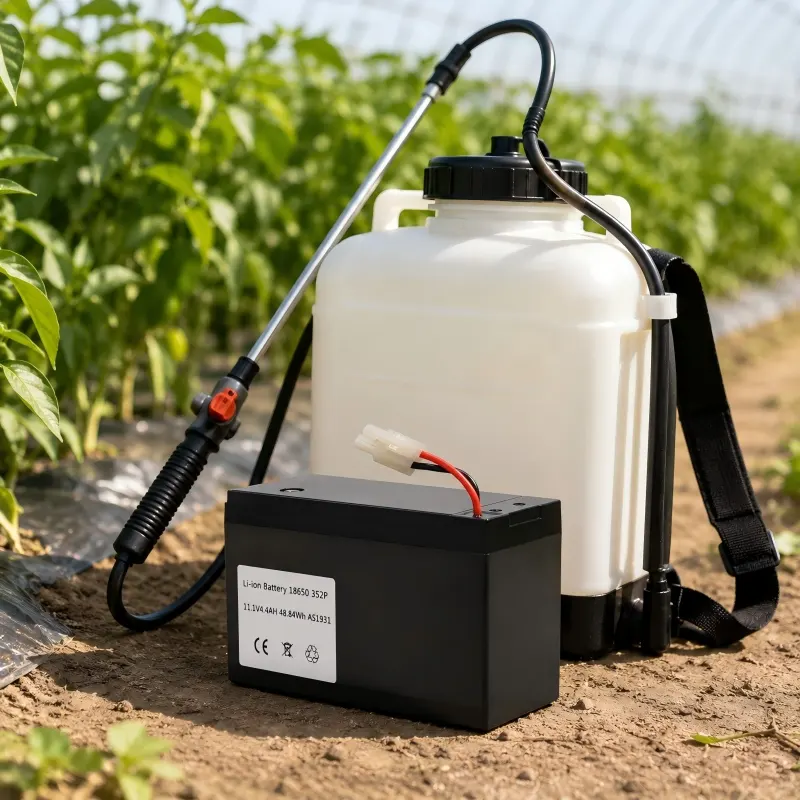

The 18650 3S2P 12V 4400mAh lithium-ion battery pack is designed for lightweight and medium-duty portable sprayers. It combines six cylindrical 18650 cells in a compact configuration, providing a practical balance between capacity, discharge performance, size, and weight. With an integrated battery management system and customizable wiring, connectors, and housing, the pack can be adapted to different sprayer designs and operating requirements.

Understanding the 3S2P Battery Configuration

The term 3S2P describes how the six 18650 cells are connected inside the battery pack. Three cells are connected in series to increase the voltage, while two identical series groups are connected in parallel to increase the capacity.

A standard lithium-ion cell has a nominal voltage of approximately 3.6V or 3.7V. Three cells connected in series create a nominal battery voltage of approximately 10.8V or 11.1V. The fully charged voltage is typically 12.6V. For this reason, the pack is commonly marketed as a 12V-class lithium-ion battery and can be used with compatible sprayer systems designed around this voltage range.

The two parallel cell groups provide a total capacity of 4400mAh when suitable 2200mAh cells are used. Different 18650 cell models may also be selected according to the required capacity, discharge current, service life, and budget.

Compact Power for Portable Sprayers

Portable sprayers must be easy to carry, especially when they are used in greenhouses, gardens, orchards, farms, or public sanitation areas. A heavy battery can make handheld or backpack equipment uncomfortable during extended operation.

The 3S2P battery structure keeps the pack relatively compact and lightweight. Compared with many traditional sealed lead-acid batteries, an 18650 lithium-ion pack can offer higher energy density in a smaller package. This allows equipment designers to reduce the size and weight of the sprayer without sacrificing dependable power.

The 4400mAh capacity is suitable for small and medium spraying tasks. Actual runtime depends on the pump current, spraying pressure, operating frequency, motor efficiency, environmental temperature, and battery condition. Manufacturers should measure both normal operating current and startup current before selecting the battery and BMS specifications.

Stable Output for Reliable Spraying

An electric sprayer uses a motor-driven pump to create pressure and move liquid through the hose and nozzle. If the battery voltage drops too quickly or cannot provide enough current, the pump may become unstable. This can result in reduced spray pressure, uneven application, or unexpected shutdowns.

High-quality 18650 cells provide stable discharge performance throughout the operating cycle. Consistent voltage helps the pump maintain reliable pressure, improving spraying efficiency and coverage.

Cell consistency is also important. Before assembly, cells should be matched according to voltage, capacity, and internal resistance. Properly matched cells charge and discharge more evenly, helping improve battery performance and extend service life.

Built-In BMS Protection

A lithium-ion battery pack should include a properly selected battery management system. The BMS monitors the cells and helps keep the battery within safe electrical limits during charging and discharging.

Typical protection functions include overcharge protection, over-discharge protection, overcurrent protection, short-circuit protection, and temperature protection. Overcharge protection prevents individual cells from exceeding their maximum voltage, while over-discharge protection stops the battery before cell voltage falls to an unsafe level.

Overcurrent and short-circuit protection help protect the battery if the sprayer draws excessive current or if the wiring is damaged. Depending on the design, temperature sensors can also be added to monitor abnormal heat during charging or operation.

The BMS current rating must be selected according to the sprayer pump. Because some motors draw a higher current at startup, both continuous and peak discharge requirements must be considered.

Customizable Battery Design

Portable sprayers are available in many different shapes, sizes, and electrical designs. A standard battery may not match every device, so customization is often necessary.

The 18650 3S2P battery pack can be customized in overall dimensions, cell brand, discharge current, connector type, cable length, charging interface, housing material, label, and packaging. Common connector options can be selected according to the sprayer’s wiring system, while custom cables can help simplify installation.

The battery can be supplied in heat-shrink wrapping, a plastic enclosure, or a custom ABS housing. A protective case can provide better resistance to vibration, dust, and minor impacts. However, waterproof performance should only be claimed when the enclosure and connectors have been specifically designed and tested for water resistance.

Additional options may include an on/off switch, fuse, battery-level indicator, charging socket, mounting bracket, or customized terminal arrangement.

Applications Beyond Portable Sprayers

Although this battery pack is designed primarily for portable electric sprayers, it can also power other compatible 12V-class equipment.

Typical applications include garden sprayers, pesticide sprayers, backpack sprayers, greenhouse spraying systems, portable disinfection equipment, electric misting devices, weed-control equipment, plant-care tools, compact cleaning machines, and sanitation devices.

The pack may also be adapted for selected inspection tools, portable pumps, small electronic systems, and agricultural equipment. Compatibility must always be confirmed according to voltage, current, connector, charger, dimensions, and operating conditions.

Charging and Maintenance Recommendations

A compatible lithium-ion charger must be used with the 3S battery pack. The charging voltage is normally 12.6V, although the final charger specification must match the battery design and BMS requirements.

A lead-acid charger should not be used unless the battery manufacturer confirms compatibility. Incorrect charging voltage or charging control may reduce battery life or create a safety risk.

Users should protect the battery from severe impacts, water, open flames, excessive heat, and conductive objects. The pack should not be opened, crushed, punctured, or modified. For long-term storage, keep it in a cool, dry environment with a partial charge. Avoid storing the battery completely discharged for extended periods.

Regular inspection of the housing, connector, cables, and charging port can help identify wear before it affects performance.

A Practical Battery Solution for Modern Sprayers

The 18650 3S2P 12V 4400mAh lithium-ion battery pack offers a compact, lightweight, and rechargeable power solution for portable sprayers. Its stable output supports reliable pump operation, while the integrated BMS provides essential electrical protection.

With flexible OEM and ODM customization, the pack can be adapted to different equipment dimensions, connectors, discharge currents, housings, and branding requirements. For sprayer manufacturers and equipment suppliers, a properly engineered 3S2P battery pack can improve portability, operating efficiency, reliability, and the overall user experience.
