Choosing the correct battery capacity is one of the most important steps when developing any battery-powered device. A battery that is too small may not provide enough operating time, while an oversized battery can increase product weight, cost, and installation limitations.

The basic method to calculate battery capacity is:

Battery Capacity (Ah) = Required Energy (Wh) ÷ Battery Voltage (V)

First, calculate the required energy:

Battery Energy (Wh) = Device Power Consumption (W) × Required Operating Time (h)

For example:

A portable device consumes 15W of power and needs to operate for 10 hours.

Required energy:

15W × 10h = 150Wh

If the device uses a 12V lithium battery:

150Wh ÷ 12V = 12.5Ah

Therefore, the battery should have a capacity of approximately 12V 12.5Ah or higher.

However, this is only a basic calculation. Real battery selection also needs to consider efficiency losses, discharge characteristics, temperature conditions, battery aging, and safety margins.

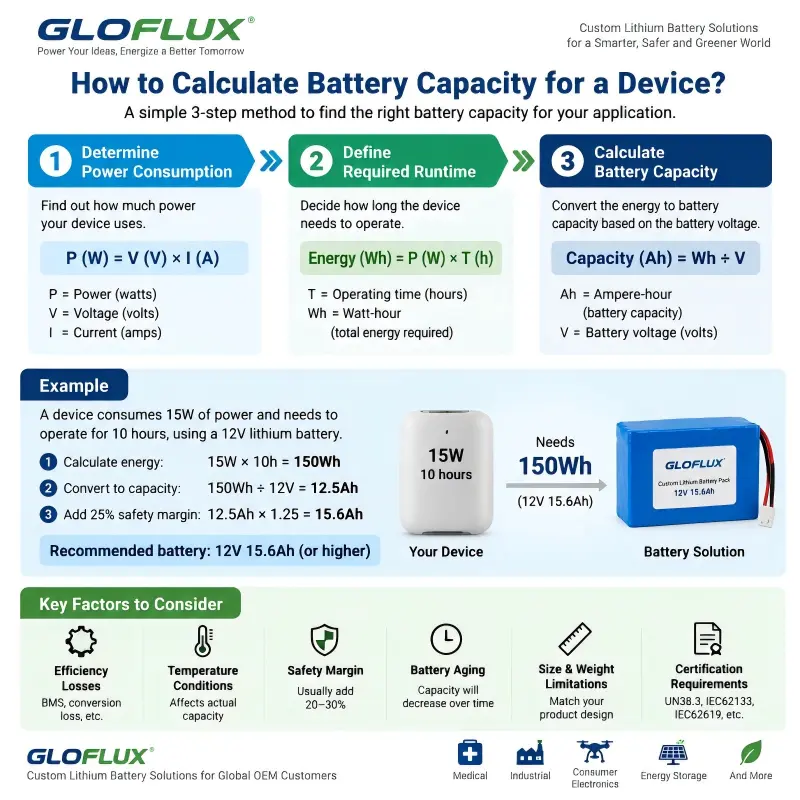

Step-by-Step Method to Calculate Battery Capacity

1. Determine Device Power Consumption

The first step is identifying how much power your device requires during operation.

Most electronic products provide:

Operating voltage (V)
Current consumption (A)
Power consumption (W)

The relationship between them is:

Power (W) = Voltage (V) × Current (A)

For example:

A device operates at 24V and draws 1.5A current:

24V × 1.5A = 36W

The device consumes approximately 36 watts during operation.

For products with different working modes, such as medical equipment, industrial systems, and smart devices, it is recommended to calculate average power consumption instead of only using the maximum power value.

2. Define Required Battery Runtime

The required operating time determines the battery energy requirement.

Different applications have different expectations:

Portable electronics may require several hours of operation
Medical devices may require continuous operation for 8–24 hours
Industrial equipment may need extended backup power
Energy storage systems may require multiple days of support

The longer the operating time, the larger the battery capacity needed.

However, battery capacity must also match the product design. Engineers need to balance:

Battery size
Product weight
Available installation space
Transportation requirements
User experience

3. Add Battery Efficiency and Safety Margin

The calculated battery capacity represents theoretical energy demand. In real applications, not all battery energy can be fully used.

Several factors reduce available capacity:

Battery management system (BMS) protection
Power conversion losses
Temperature changes
Battery aging
Charging and discharging efficiency

For most product designs, engineers usually add a safety margin of 20–30%.

Example:

Calculated energy requirement:

100Wh

Adding a 25% safety margin:

100Wh × 1.25 = 125Wh

The selected battery should provide approximately 125Wh capacity.

Why Battery Capacity Calculation Is Important for OEM Product Development

For product manufacturers, battery selection is not simply choosing a battery with a higher mAh rating.

The battery must match the complete product system.

A professional battery design considers:

Voltage requirements
Continuous and peak current
Charging method
Battery chemistry
Physical dimensions
Communication functions
Safety certifications

For example, a medical device battery requires high reliability, stable discharge performance, and strict safety standards. A portable consumer device may focus more on lightweight design and compact size.

The correct battery solution depends on the specific application.

How GLOFLUX Helps Customers Design the Right Battery Solution

At GLOFLUX Energy, we specialize in customized lithium battery solutions for global OEM and product development companies.

Our battery engineering team helps customers transform product requirements into reliable battery systems, including:

Custom Li-ion battery packs
Lithium polymer battery packs
Medical device batteries
Industrial equipment batteries
Portable power batteries
Energy storage battery solutions

Instead of providing a standard battery based only on capacity, GLOFLUX evaluates the complete application requirement, including:

Device power consumption
Required operating time
Voltage configuration
Size limitations
Charging requirements
BMS functions
Certification requirements

With professional battery design support, customers can achieve better product performance, longer service life, and improved safety.

What Information Should Buyers Prepare Before Contacting a Battery Manufacturer?

To receive an accurate battery recommendation, buyers should provide the following information:

Information Required	Example
Device application	Medical device, IoT equipment, industrial tool
Operating voltage	12V, 24V, 48V
Power consumption	10W, 50W, 100W
Working time requirement	8 hours, 24 hours
Maximum battery size	Product installation space
Charging method	USB-C, adapter, solar charging
Required certifications	UN38.3, IEC62133, IEC62619

The more detailed the product information, the more accurately engineers can design the battery solution.

Frequently Asked Questions About Battery Capacity Calculation

How do I calculate battery capacity from power consumption?

Multiply the device power consumption by the required operating time to calculate energy:

Wh = W × Hours

Then divide the result by battery voltage:

Ah = Wh ÷ V

Is a higher battery capacity always better?

Not necessarily. A larger battery provides longer runtime but also increases size, weight, and cost. The ideal battery should balance performance, product requirements, and application limitations.

How much battery capacity do I need for a 24-hour device?

It depends on the device power consumption.

For example:

A 5W device running for 24 hours:

5W × 24h = 120Wh

With a 25% safety margin:

120Wh × 1.25 = 150Wh

The final battery capacity depends on the battery voltage.

Can GLOFLUX customize battery capacity and voltage?

Yes. GLOFLUX provides customized lithium battery solutions with adjustable capacity, voltage, dimensions, connectors, BMS functions, and protection features according to customer requirements.

What is the difference between Ah and Wh?

Ah (Ampere-hour) describes battery capacity based on current output, while Wh (Watt-hour) represents total stored energy.

Wh is usually more useful when comparing batteries with different voltage levels.

Conclusion

Calculating battery capacity correctly is essential for creating safe, reliable, and efficient battery-powered products. A professional battery design requires more than a simple capacity calculation. Engineers must consider power consumption, runtime, efficiency, safety margins, and application requirements.

GLOFLUX Energy provides custom lithium battery design and manufacturing services for companies worldwide, helping customers develop reliable battery solutions for medical, industrial, consumer, and energy storage applications.
