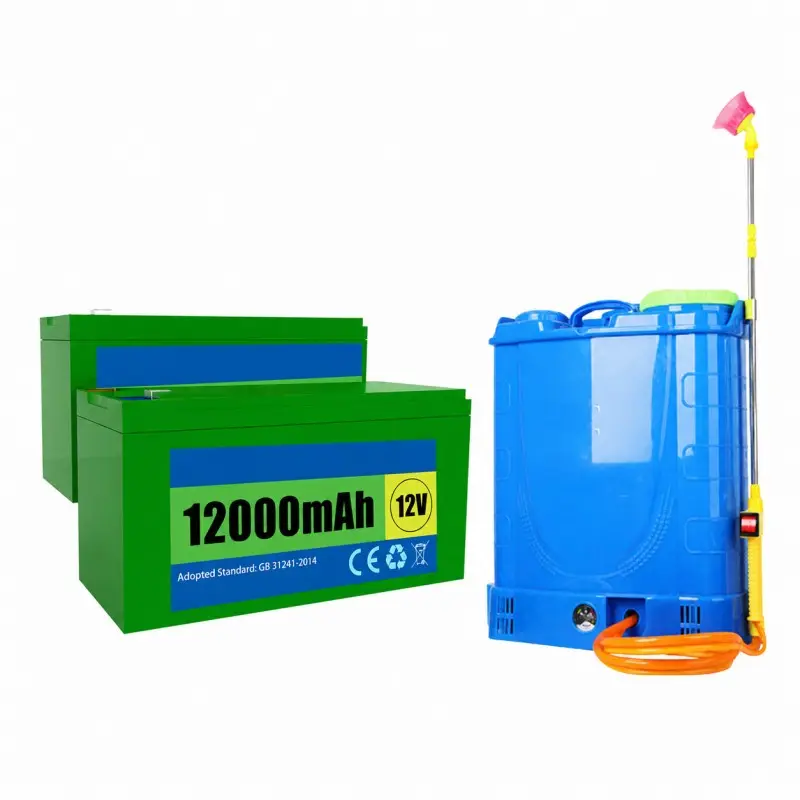

12V 12Ah/24Ah Custom 18650 Lithium-Ion Battery Pack with BMS and ABS Housing for Electric Sprayers

Electric sprayers have become essential tools for agriculture, gardening, sanitation, pest control, and public-area disinfection. Their operating efficiency depends heavily on the quality of the power source. A reliable battery must provide stable voltage, sufficient runtime, safe charging, and consistent performance under demanding outdoor conditions.

The 12V 12Ah/24Ah custom 18650 lithium-ion battery pack is designed to meet these requirements. Built with high-quality 18650 cells, an integrated battery management system, and a durable ABS housing, this battery provides dependable power for electric backpack sprayers, pesticide sprayers, garden sprayers, and other compatible 12V equipment.

Why Choose a Lithium-Ion Battery for Electric Sprayers?

Traditional electric sprayers often use sealed lead-acid batteries. Although these batteries are widely available, they are usually heavy, bulky, and less efficient for portable applications. Operators who carry backpack sprayers for several hours may experience unnecessary fatigue caused by the battery’s weight.

A lithium-ion battery pack offers a higher energy density, allowing it to store more energy in a lighter and more compact structure. This makes the sprayer easier to carry and improves mobility in farms, orchards, greenhouses, gardens, and large outdoor areas.

Lithium-ion batteries also have a lower self-discharge rate than many conventional rechargeable batteries. When stored correctly, they retain more usable energy between applications. Their stable voltage output helps the sprayer pump maintain consistent pressure, supporting uniform spraying throughout the working period.

12Ah and 24Ah Capacity Options

Different spraying tasks require different operating times. For this reason, the custom 12V battery pack is available in both 12Ah and 24Ah configurations.

The 12V 12Ah battery is suitable for portable sprayers used in gardens, small farms, greenhouses, sanitation projects, and short-to-medium spraying operations. It balances capacity, weight, size, and portability, making it a practical replacement for many standard sprayer batteries.

The 12V 24Ah battery provides greater energy storage for applications requiring extended runtime. It is suitable for larger agricultural areas, commercial spraying work, repeated daily use, and equipment with higher power consumption. The longer operating time can reduce charging interruptions and improve overall work efficiency.

The actual runtime depends on the sprayer motor, pump current, operating pressure, spraying frequency, environmental conditions, and battery configuration. Manufacturers should evaluate the equipment’s continuous and peak current requirements before selecting the capacity.

High-Quality 18650 Lithium-Ion Cells

The battery pack uses cylindrical 18650 lithium-ion cells, which are commonly used in portable power tools, energy storage equipment, medical devices, electric mobility products, and industrial battery systems.

A properly designed 18650 battery pack can provide stable discharge performance, high energy density, and a long service life. The cells are arranged in a series and parallel configuration to achieve the required voltage and capacity.

Cell consistency is important for battery safety and performance. Cells should be matched according to capacity, voltage, and internal resistance before assembly. Consistent cells help the battery pack charge and discharge more evenly, reducing stress on individual cells and improving long-term reliability.

Integrated BMS Protection

Safety is a critical consideration for every rechargeable lithium battery. This electric sprayer battery includes an integrated battery management system that monitors and controls the battery during charging and discharging.

The BMS can provide protection against overcharge, over-discharge, overcurrent, short circuits, and abnormal temperatures. Overcharge protection helps prevent the cells from exceeding their safe voltage range, while over-discharge protection stops the battery before the voltage falls too low.

Overcurrent and short-circuit protection help reduce the risk of damage caused by excessive electrical loads or incorrect connections. Temperature monitoring can also protect the battery when operating or charging conditions become unsuitable.

The BMS specifications should match the sprayer’s operating current. A pump may draw a higher current during startup than during normal operation, so both continuous and peak discharge requirements must be considered during battery customization.

Durable ABS Protective Housing

Electric sprayer batteries are frequently used in environments where vibration, dust, moisture, chemicals, and accidental impacts may occur. The ABS housing provides a strong external enclosure for the battery cells, BMS, wiring, and connections.

ABS material offers good mechanical strength and impact resistance while keeping the battery relatively lightweight. The enclosure can be designed according to the sprayer’s battery compartment, installation structure, connector position, and appearance requirements.

The housing can also include customized handles, mounting points, charging ports, cable outlets, switches, indicators, or ventilation structures. The required sealing level should be confirmed according to the intended application. A standard ABS case should not automatically be considered fully waterproof unless it has been specifically designed and tested for water resistance.

Customization for Different Sprayer Models

Electric sprayers vary in size, pump power, operating current, battery compartment dimensions, and connector design. A custom battery solution helps ensure better electrical and mechanical compatibility.

Customers can customize the battery capacity, dimensions, cell configuration, discharge current, connector type, cable length, charging interface, housing color, label, and packaging. Additional functions such as a power indicator, switch, charging socket, fuse, communication interface, or customized protection settings may also be available.

Before production, the battery manufacturer should receive detailed information about the application, including the required voltage, expected runtime, continuous current, peak current, available installation space, connector specifications, charging method, and operating environment.

Main Applications

This 12V 18650 lithium-ion battery pack is mainly designed for electric backpack sprayers and agricultural pesticide sprayers. It can also be used in garden sprayers, fertilizer spraying equipment, weed-control systems, portable disinfection machines, sanitation sprayers, misting equipment, and compatible cleaning devices.

Other potential applications include portable water pumps, irrigation equipment, mobile inspection systems, and customized 12V agricultural or industrial devices. Compatibility must always be confirmed based on voltage, current, connector, size, and charging requirements.

Charging and Maintenance Recommendations

Using the correct lithium-ion charger is essential for battery safety and service life. The charger voltage and current must match the battery pack and BMS specifications. Chargers designed for lead-acid batteries should not be used unless the battery manufacturer confirms compatibility.

Users should avoid short circuits, severe impacts, excessive heat, water exposure, and unauthorized disassembly. The battery should be stored in a cool, dry place and partially charged during long periods of inactivity. Regular charging and proper storage can help preserve battery performance.

A Reliable Power Solution for Electric Sprayers

The 12V 12Ah/24Ah custom 18650 lithium-ion battery pack combines high energy density, stable output, BMS protection, and durable ABS housing. It provides a practical power solution for electric sprayers that require reduced weight, longer runtime, dependable operation, and flexible customization.

With OEM and ODM support, the battery can be adapted to different sprayer designs, performance requirements, connectors, housings, and branding needs. A carefully engineered battery pack can improve equipment portability, spraying efficiency, operating safety, and the overall user experience.
