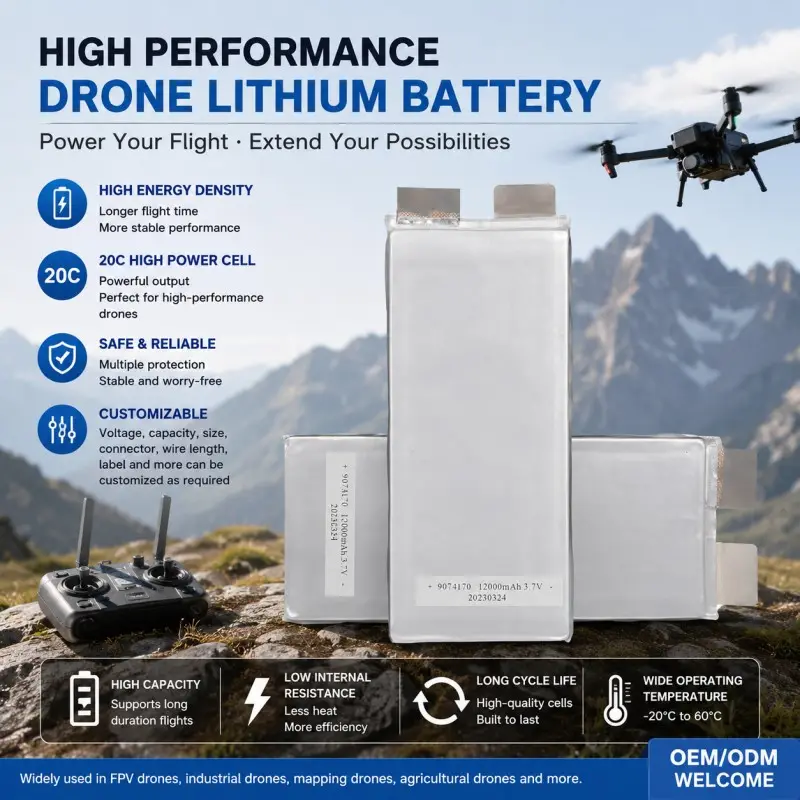

9074170 3.7V 12Ah 20C Rechargeable Li-Polymer Battery for Drones, FPV Aircraft, and Aerial Photography

9074170 LiPo Battery Cell solutions are designed for drones, FPV aircraft, aerial photography equipment, and custom UAV platforms that require high capacity and strong discharge performance. With a nominal voltage of 3.7V, a rated capacity of 12Ah, and a 20C discharge capability, this rechargeable lithium-polymer cell provides a practical power source for demanding airborne applications.

The flat pouch structure also gives aircraft manufacturers greater flexibility when arranging the battery inside compact frames or custom enclosures. Depending on the project, the cell can be used individually or connected in series and parallel to create a battery pack with a higher voltage or greater capacity.

Understanding the 9074170 Battery Size

The model number 9074170 usually refers to the approximate dimensions of the pouch cell. In this format, the cell is approximately 9.0 mm thick, 74 mm wide, and 170 mm long. Actual production dimensions may vary slightly depending on the cell design, protective materials, wire layout, and manufacturing tolerances.

This rectangular shape is especially useful for UAV systems with limited internal space. Compared with cylindrical cells, a pouch battery can often use the available compartment more efficiently. It can be mounted beneath the frame, inside the fuselage, or within a customized protective housing.

Before choosing the cell, the available installation area should be measured carefully. Space must also be reserved for the wires, connector, insulation, mounting straps, and possible expansion during operation.

12Ah Capacity for Extended Operation

A rated capacity of 12Ah, or 12000mAh, provides a large amount of stored energy for a single lithium-polymer cell. This makes the battery suitable for applications where longer operating time is more important than keeping the power source extremely small.

In FPV drones and aerial photography platforms, higher capacity can support longer flight sessions and reduce the frequency of battery replacement. It may also provide energy for onboard cameras, communication modules, lighting, sensors, GPS equipment, and control systems.

However, final flight time depends on the complete aircraft design. Important factors include total takeoff weight, motor efficiency, propeller size, average throttle level, payload, wind conditions, operating temperature, and flying style.

A battery with greater capacity is also heavier. Aircraft designers should therefore evaluate whether the additional energy compensates for the increased load. The best result comes from matching the battery to the propulsion system rather than simply selecting the highest available capacity.

20C Discharge Performance

The 20C discharge rating indicates that the battery is designed to provide substantial current relative to its capacity. For a 12Ah cell, this rating supports high-power output for applications such as takeoff, climbing, acceleration, and operation with heavier payloads.

Strong discharge performance is particularly important for drones because motors may draw much more current during takeoff or rapid maneuvers than during steady cruising. A battery that cannot provide sufficient current may experience excessive voltage drop, heat generation, or unstable aircraft performance.

The real current requirement should be confirmed through system testing. Motor specifications, ESC ratings, propeller size, wiring, connectors, and cooling conditions all affect the final result. Designers should also include an appropriate safety margin rather than operating continuously at the maximum theoretical limit.

Suitable for Custom UAV Battery Packs

A single 3.7V cell may be suitable for low-voltage electronics, but many FPV drones and RC aircraft require higher operating voltages. Several 9074170 cells can be connected in series to create a multi-cell battery pack.

For example, connecting six cells in series creates a battery pack with a nominal voltage of 22.2V. Parallel connections can be added when a project requires greater capacity or current capability.

The final configuration should be designed according to the aircraft’s motor system, ESC input range, payload, target operating time, and available installation space. Cell matching is essential when producing a multi-cell pack. Cells should have similar voltage, capacity, and internal resistance to support balanced charging and consistent discharge behavior.

A balance connector is normally included in multi-cell configurations so that each series group can be monitored during charging.

Applications in Drone and FPV Systems

The 9074170 battery can be considered for a wide range of airborne systems. Long-range FPV aircraft can benefit from its high capacity, while aerial photography drones can use the stored energy to support cameras and stabilizing equipment.

It may also be used in:

• Mapping and surveying UAVs
• Industrial inspection drones
• Agricultural monitoring aircraft
• Large multirotor platforms
• Fixed-wing RC aircraft
• Research and prototype UAVs
• Communication relay drones
• Customized autonomous systems

The battery’s actual suitability depends on voltage, current demand, dimensions, weight, and environmental requirements. Testing should be completed in the final aircraft rather than relying only on the cell specification.

Custom Connectors, Wiring, and Protection

Different drone systems use different connectors and cable arrangements. The battery can be customized with a suitable discharge connector, wire gauge, cable length, polarity layout, and protective structure.

Common customization options include connector type, wire direction, insulation material, external label, packaging style, protection circuit, and cell combination. For high-current applications, the cable and connector must be selected according to the expected continuous and peak load.

Undersized wiring can create resistance, heat, and energy loss. The cable should also be secured so that vibration does not damage the solder joints or cell tabs.

Additional cushioning, insulation, or structural support may be added when the battery will operate in environments with frequent vibration or impact.

Charging and Storage Recommendations

A compatible lithium-polymer charger should be used for charging the battery. For multi-cell packs, balance charging helps keep the voltage of each cell group within the correct range.

The battery should be charged in a supervised, well-ventilated area away from combustible materials. It should not be charged immediately after a high-load flight while it is still warm.

Regular inspection is also important. Users should stop using the battery if they notice swelling, damaged wrapping, unusual odor, excessive heat, loose wires, or a deformed connector.

For long-term storage, the battery should be kept at the recommended storage voltage in a cool and dry location. Storing it fully charged or deeply discharged for extended periods may shorten its service life.

A Flexible Power Option for Professional UAV Projects

The 9074170 3.7V 12Ah 20C rechargeable Li-Polymer battery combines high capacity, strong discharge capability, and a space-efficient pouch structure. It can support FPV aircraft, aerial photography platforms, and customized UAV systems when correctly matched to the application.

By adjusting the cell configuration, connector, cable, protection method, and outer packaging, manufacturers can develop a battery solution that fits the aircraft’s electrical and mechanical requirements. Careful system matching, proper charging, and regular maintenance help improve performance, reliability, and operating life.
