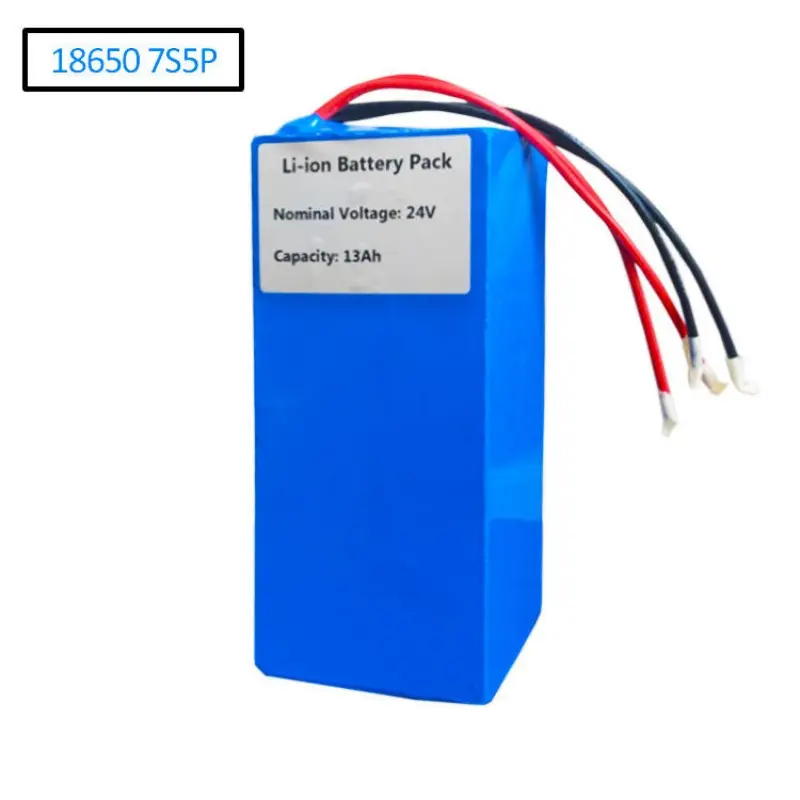

Home / 24V 10Ah–13Ah 7S5P 18650 Lithium-Ion Battery Pack for Solar Street Lights
Our 24V 10Ah-13Ah 7S5P 18650 lithium-ion battery pack offers good energy storage for solar street lights and outdoor LED systems. With constant output, high energy density, and built-in BMS, it promotes safe charging every day and discharging every night. Dimensions, connectors, cables, casing, charging current, and discharge current can be tailored to various installation and project needs across the globe.
- Model: 18650-7S5P
- Cell Dimensions: 18 × 65 mm
- Nominal Voltage:24 V
- Discharge Rate: 3C
- Capacity: 13000 mAh
- Internal Resistance: 280 mΩ
- Application: Solar Street Lights
- Charging Voltage: 29.4 V
Get Free Quote
Back to Product List
Overview
The 24V 10Ah-13Ah 7S5P 18650 lithium-ion battery pack is tailored to meet the needs of solar street lights, which need a stable power supply, energy storage, and a small size. The pack was constructed using quality 18650 cells in a 7-series, 5-parallel design to provide reliable nighttime lighting and daily solar charging cycles. A built-in BMS can be used to defend against overcharge, over-discharge, overcurrent, short circuit, and abnormal temperature, enhancing safety and service life. The battery is available for customization based on connector type, cable length, casing, dimensions, charging current, discharge current, and installation requirements. Its lightweight design and energy density allow it to be used in pole-mounted, integrated, and split-type solar lighting systems. It is a rechargeable battery solution that is suitable for solar street lamps, garden lights, pathway lighting, security lights, parking area lighting, and other outdoor LED applications where reliability, design flexibility, and low maintenance are of concern. Manufacturers, distributors, and project contractors around the globe can receive OEM and ODM assistance.
Product Details
- 7S5P Battery Configuration
Constructed using 35 rechargeable 18650 lithium-ion cells in a 7-series and 5-parallel system to provide stable 24V-class power output.
- 10Ah to 13Ah Capacity
Offered in various capacity options to accommodate various LED power requirements, operating periods, and nighttime lighting needs.
- High Energy Density
The small 18650 cell structure offers stable energy storage and minimizes the size and weight of the battery.
- Integrated BMS Protection
The battery management system is embedded to prevent overcharge, over-discharge, overcurrent, short circuit, and abnormal temperature.
- Stable Discharge Output
Provides reliable power to LED lighting systems when operating all night.
- Flexible Customization
The battery size, casing, connector, cable length, charging current, discharge current, and BMS parameters can be customized.
Application Areas
The battery pack is a 24V 10Ah-13Ah 7S5P 18650 lithium-ion battery pack, which is intended to be used in solar-powered lighting and outdoor energy storage systems that need small-scale installation, stable discharge, and reliable rechargeable performance.
- Solar street lights
- Outdoor light systems using LED.
- Solar garden and pathway lights.
- Parking area lighting
- Landscape and security lighting.
- Traffic warning and road lighting equipment.
- Split and integrated solar lighting systems.
- Remote off-grid lighting projects.
Technical Parameters
| Model | 18650-7S5P |
| Cell Size | 18× 65mm |
| Discharge Rate | 3C |
| Nominal Voltage | 24V |
| Capacity | 13000 mAh |
| Internal Resistance | 280 mΩ |
| Processing Method | Customized As Required |
| Application | Solar Street Lights |
| Charging Voltage | 29.4 V |
