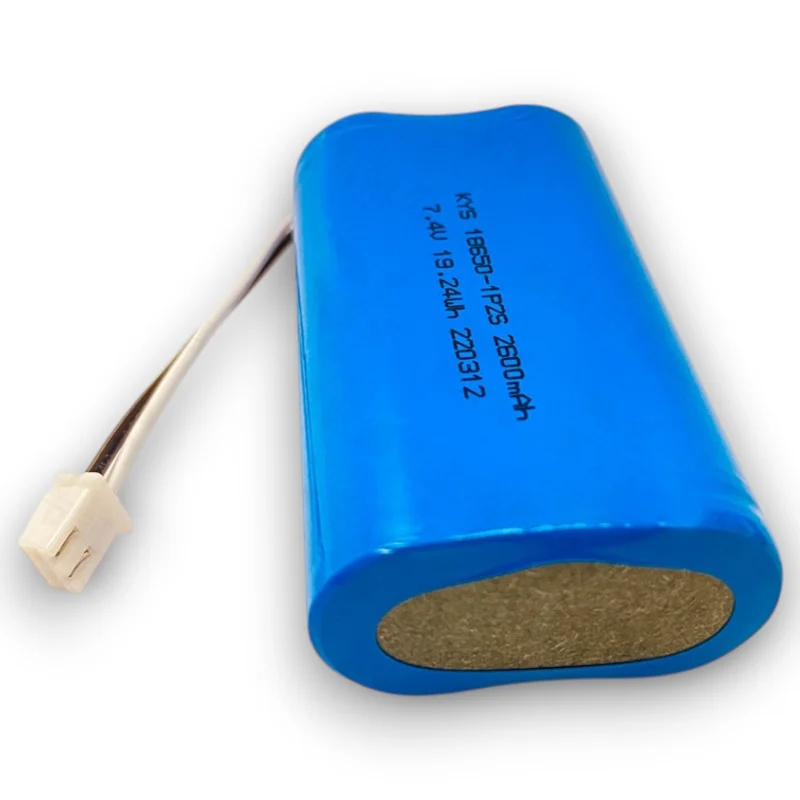

18650-1P2S 7.4V 2600mAh Removable Batteries

2600mAh Battery Pack Lithium Ion Structural Overview

The Removable Batteries (18650-based 1P2S) are assembled by engineers in a controlled series-connected architecture. They first pick two identical 18650 cylindrical cells with identical capacity, voltage curve and internal resistance properties. They then fix the cells into a fixed 1P2S electrical structure with uniform polarity orientation and mechanical separation. In the meantime, technicians insert the cells into an insulating holder, which stabilizes geometry and restricts the displacement caused by vibration during assembly. Once they are positioned, they then prepare the module to be interconnected and integrated into protective circuits.

Cell Chemistry and Internal Material Composition

Each lithium-ion cell is built by manufacturers with a layered electrochemical system that consists of a lithium metal oxide cathode and a graphite-based anode. Moreover, they place a microporous polymer separator between layers of electrodes to ensure ionic movement and avoid internal short circuits. In addition, they fill the cell with organic carbonate electrolyte that has lithium salts, and they also regulate the moisture content in the cell with strictness in order to prevent chemical degradation. In the meantime, the cylindrical shells of 18650 are nickel-plated steel cases to ensure structural sealing and stability of pressure during operation.

Electrode Processing and Cell Fabrication Flow

The process of electrode production starts with the mixing of active materials, conductive carbon, and polymer binders into a homogeneous slurry by the technicians. They then apply the slurry to aluminum and copper foil collectors with precision coating systems. They dry the electrodes in controlled temperature conditions after coating to eliminate solvents. Calendaring rollers are then used to press the electrode layers to form uniform density and thickness. Afterwards, they cut the processed sheets into strips and roll them up into spiral jelly rolls within automated winding machines. In the meantime, operators weld electrode tabs with ultrasonic or resistance welding to provide stable current conduction paths.

Formation Cycling and Standard Compliance Control

Controlled formation cycling is done by operators to activate electrochemical interfaces and stabilize internal SEI layers. They then perform aging tests in controlled temperature conditions to test voltage stability and impedance stability. Lastly, electrical verification, insulation resistance tests and structural checks are done by quality inspection teams. During the manufacturing process, the 2600mAh lithium ion battery pack is tested in accordance with IEC 62133 and UN38.3, and meets the requirements of transport safety and electrical reliability.

Product Features

• True Rated Capacity – Honest and measurable performance with reliable output, no overstated specifications.
• Smart Charge & Discharge Protection - Built-in protection system to avoid overcharge and over-discharge to increase battery life.
• Overcurrent and Short Circuit Protection - Automatic cutoff response will provide safe operation in abnormal current conditions.
• Explosion & Leakage Protection - Safety valve and bottom insulation ring offer twofold structural protection.
• Safe Internal Structure - Independent positive and negative electrode design minimizes short-circuit hazards.
• Stable Performance - Mature cell technology guarantees stable quality and long-term performance.

Application Scenarios

Due to their large capacity and stable performance, 18650 lithium battery packs are widely used in the following fields:

• Power Solutions: Battery packs, power banks.
• Smart Audio/Video: AV smart devices, mobile digital products, and receipt speakers.
• Home and Living: Small home appliances, lighting devices, handheld fans.
• Kids & Outdoor: Toys for children.
