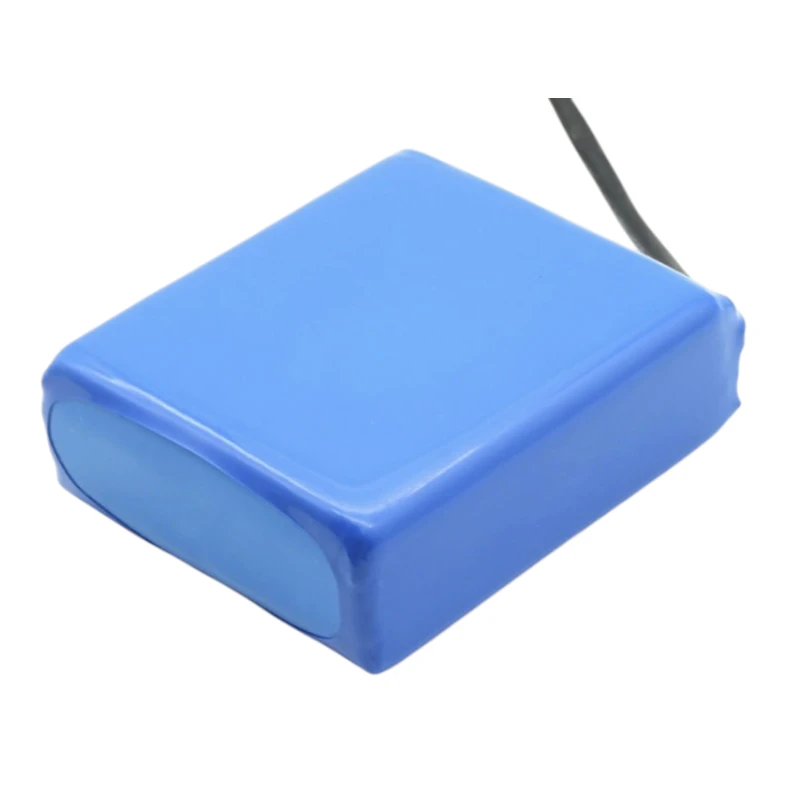

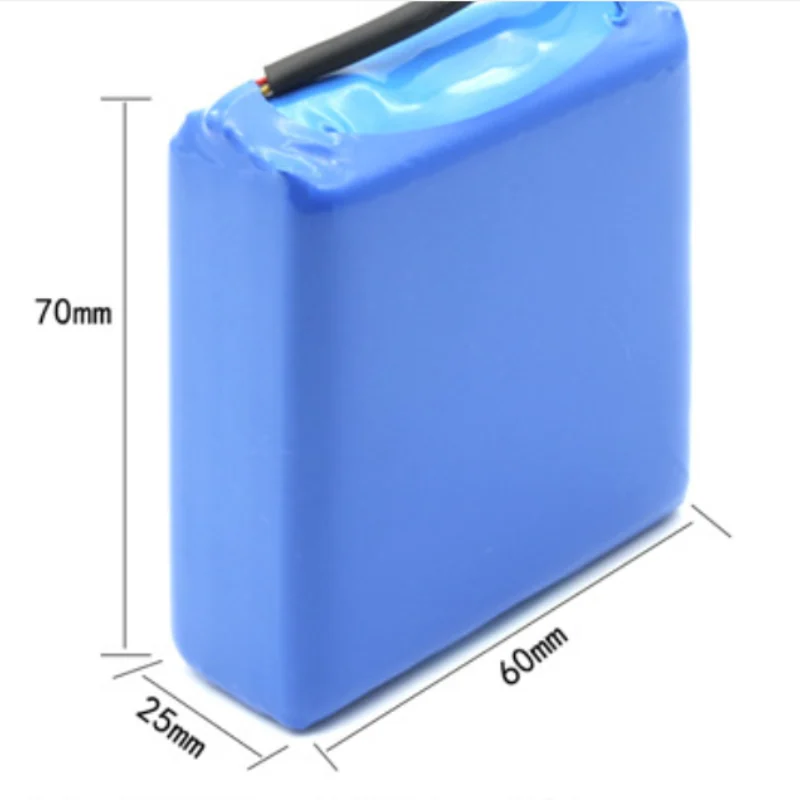

256070 3.7 V Lithium Battery Pack

3.7 V Lithium Battery Pack Structural Overview

Engineers design the 256070 3.7V lithium battery pack using a modular cell arrangement method. First, they select and sort individual lithium-ion cells based on capacity, voltage, and internal resistance consistency. Then, they organize the cells into a structured configuration according to the required electrical layout. Meanwhile, technicians place the cells into insulated holders to maintain spacing and prevent movement during assembly. After alignment, the pack proceeds to electrical connection preparation and structural integration.

Cell Material System and Internal Chemistry

Inside each cell, manufacturers build a layered lithium-ion structure. The cathode uses lithium metal oxide coated on aluminum foil, while the anode uses graphite material coated on copper foil. In addition, a microporous polymer separator is inserted to prevent direct contact between electrodes while allowing ion flow. Furthermore, the electrolyte consists of lithium salt dissolved in organic carbonate solvents, and moisture levels are tightly controlled before sealing. Meanwhile, the metal casing provides structural strength and internal pressure stability throughout operation.

Pack Assembly and Electrical Connection Process

Technicians begin by grouping cells with similar electrical characteristics. Next, they connect cells using nickel strips through spot welding to form stable low-resistance joints. After that, the pack is configured according to the required series and parallel structure. Meanwhile, a protection circuit module (BMS/PCM) is integrated to manage voltage balance, current control, and safety monitoring. In addition, wiring is routed carefully and insulated to avoid short circuits and polarity errors.

Formation Testing and Compliance Standards

Engineers perform controlled charge-discharge cycling to balance all cells within the pack. Afterwards, aging tests are conducted to evaluate voltage stability and internal resistance variation. Finally, insulation resistance testing, weld integrity inspection, and full electrical verification are completed. Throughout production, the 3.7 V lithium battery pack complies with IEC 62133 and UN38.3 standards, ensuring structural reliability, electrical consistency, and transport safety compliance.

Product Features

• Stable and reliable power output for portable devices
•  Built-in protection circuit for enhanced safety performance
• High energy density with compact battery pack design
• Long cycle life supporting repeated charge and discharge
• Flexible OEM/ODM customization for size, capacity, and connectors

Application Scenarios

• Applicable Products: Walkie Talkie, Bicycle Light, Air Purifier, Smart Watch, Beauty Instrument, Bluetooth Speaker
