1.5V Rechargeable AA Lithium Battery

A 1.5V rechargeable AA lithium battery uses an internal lithium-ion cell with a regulated output circuit. Engineers design the cell to maintain a steady 1.5V output during discharge. The internal system converts higher lithium voltage into a stable DC output. In addition, the battery keeps a controlled cutoff near 1.0–1.1V to support electronic stability.

Cell Structure and Materials

Manufacturers build the internal core using lithium-ion chemistry. They combine graphite anodes with lithium-based cathode materials. Copper foil collects current on the anode side. Aluminum foil supports the cathode structure. Meanwhile, a polymer separator blocks direct contact between electrodes. It still allows ion flow during operation.

The outer shell uses metal casing or reinforced polymer housing. This layer protects internal components from impact and compression. It also helps maintain stable geometry during repeated charge cycles.

Electrical Regulation System

Engineers integrate a PCB control board inside each cell. This board manages voltage conversion and current output. It also stabilizes discharge from full charge to empty state. In addition, the system limits maximum current draw to protect internal components. Many designs support up to 2A–3A discharge depending on configuration.

Assembly and Welding Process

Technicians sort lithium cells before assembly. They match internal resistance and voltage levels. Next, they apply precision welding to connect electrode tabs. This step reduces resistance at connection points. After that, they install the regulation board and insulating layers.

Workers then seal the battery casing under controlled pressure. This prevents internal movement and improves structural stability.

Standards and Quality Control

Production follows UN38.3 transport safety rules. It also follows CE and RoHS material compliance standards. Manufacturers run cycle testing to verify long-term stability. In addition, they test charging behavior using controlled 5V input systems. This ensures safe and consistent recharge performance.

Products Features

⚡ Fast Charging Efficiency

• Fully charges batteries in about 2.5 hours
• Requires 5V/3A Type-C power adapter
• Smart chip control ensures stable and safe charging

🔋 Intelligent Battery Recovery

• Micro-current technology helps activate deeply discharged batteries
• Supports recovery of batteries stored at 0% power for long periods
• Helps extend overall battery lifespan

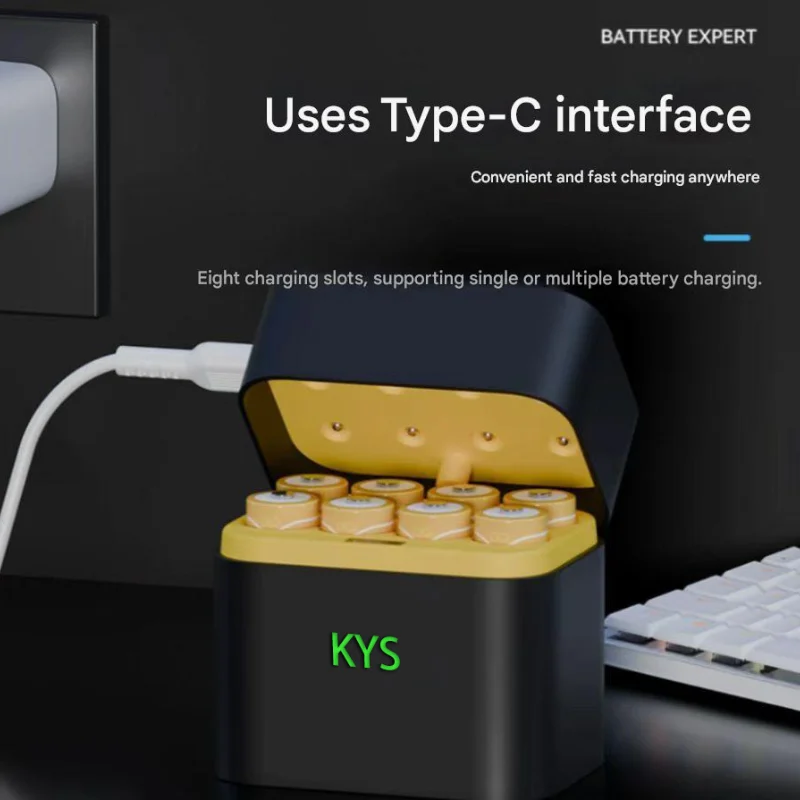

🔌 Convenient Type-C Charging

• Equipped with a modern Type-C charging port
• Supports charging from mainstream power devices
• Easy and convenient to use anywhere

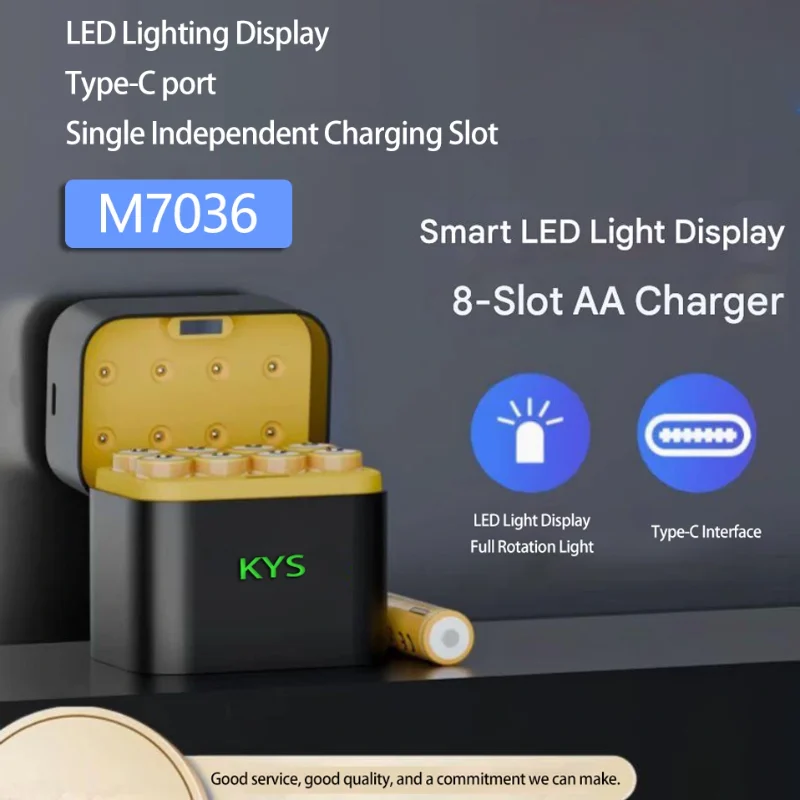

🔄 8 Independent Charging Slots

• Supports charging of up to 8 batteries simultaneously
• Each slot works independently
• Allows charging single or multiple batteries without interference

💡 LED Smart Status Indicator

• Flashing Green: Charging in progress
• Solid Green: Charging completed
• Built-in detection alerts for incompatible batteries or abnormal conditions

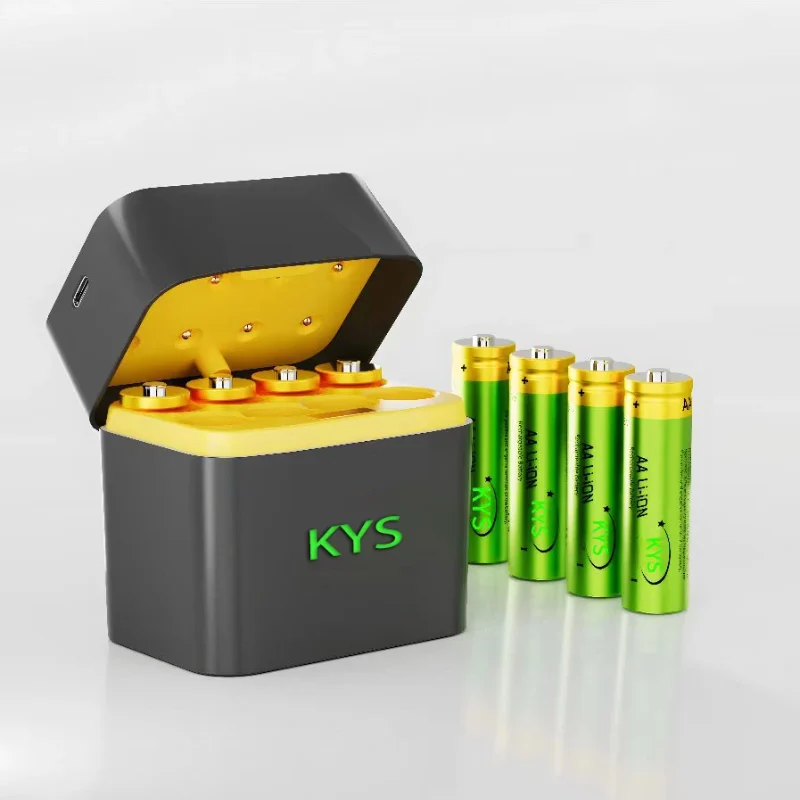

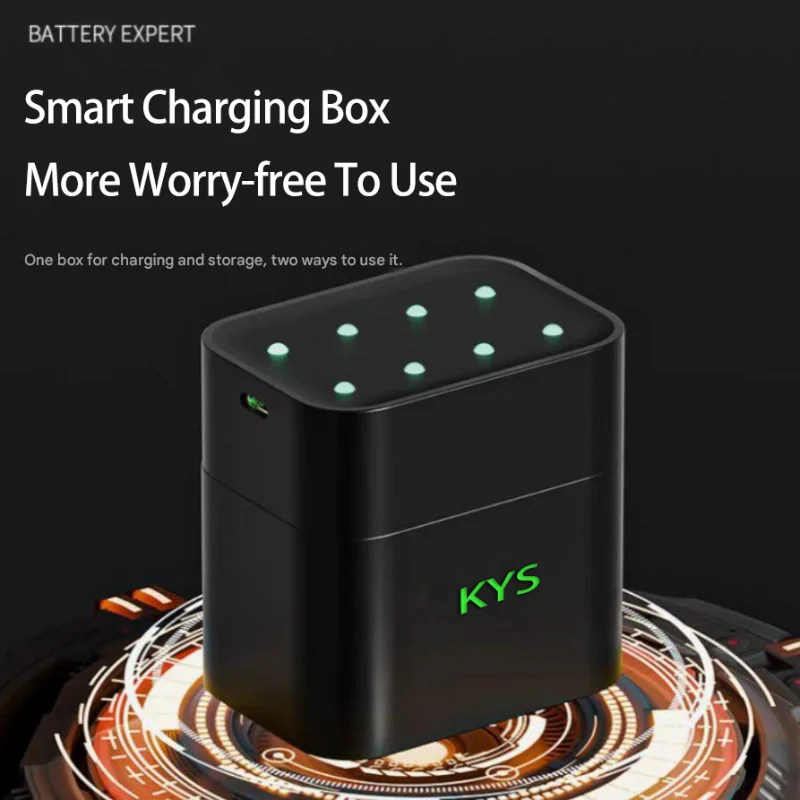

📦 Dual Function Design

• Charging Mode: Efficient battery charging
• Storage Mode: Safe battery storage
• One device for charging and storage convenience

🛡️ Multiple Safety Protection

• Smart chip provides overcharge and overcurrent protection
• Detects incompatible batteries automatically
• Ensures safe and reliable operation

🔍 Clear Polarity Guidance

• Clear markings for correct battery placement
• Helps prevent incorrect installation
• Reduces risk of charging failure or damage

Applicable Scenarios

• Home & Living: Remote Controls, Wall Clocks, Wireless Mice, Flashlights.
• Parenting & Toys: Baby Monitors, Electric Toys, Early Learning Machines.
• Office & Audio: Wireless Microphones, Conference Devices, Calculators.
• Medical & Health: Blood Pressure Monitors, Thermometers, Glucose Meters.
• Outdoor & Photography: Headlamps, Camping Lights, Camera Flashes.
